It is ideal for tinning wires quickly and safely as well as
for soldering and desoldering through-hole multipin components.
Additionally, it offers all the advantages of JBC Most Efficient Soldering System.

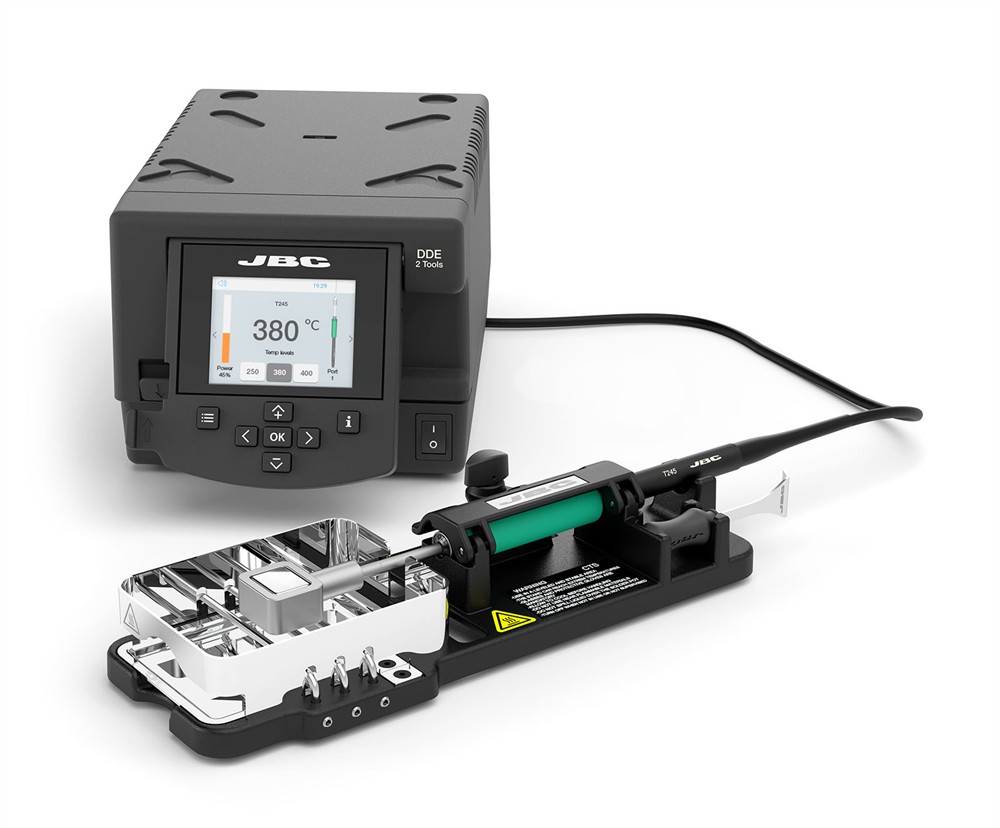

It includes:
• DDE 2-Tool Control Unit: It operates with 2 soldering or desoldering tools simultaneously and allows you to update the software, create graphs and manage parameters from a PC.
• CTS Solder Pot Stand: Equipped with a residue tray and protective screen, it prevents accidental tipping and allows you to work safely.
• CHB Converter: It allows you to connect the handle to the control unit directly.
• T245 General Purpose Handle: Compatible with C245SP01 (18 x 15 mm). The long-lasting solder pot will resist the corrosiveness of lead-free solder alloys.
• Cartridge C245SP01 (18 x 15 mm) included.
PRODUCT COMPOSITION
SPECIFICATIONS
Peak power
150 W per tool
Selectable temperature
90 to 450 ºC / 190 to 840 ºF
Idle temp. stability (still air)
±1.5 ºC / ±3 ºF / Meets and exceeds
Temperature accuracy
±3 % (using reference cartridge)
Temp. adjustment
±50 ºC / ±90 ºF through station setting menu
Tip to ground vol./ resist.
Meets and exceeds
ANSI/ESD S20.20 and IPC J-STD-001F
Ambient Operating Temp
10 - 40 ºC / 50 - 104 ºF
Fume Extractor/Peripherals/Robot
Complies with CE standards
Heavy Duty
232 x 148 x 120 mm / 4.95 kg.
Package
450 x 345 x 243 mm / 6.40 kg.
