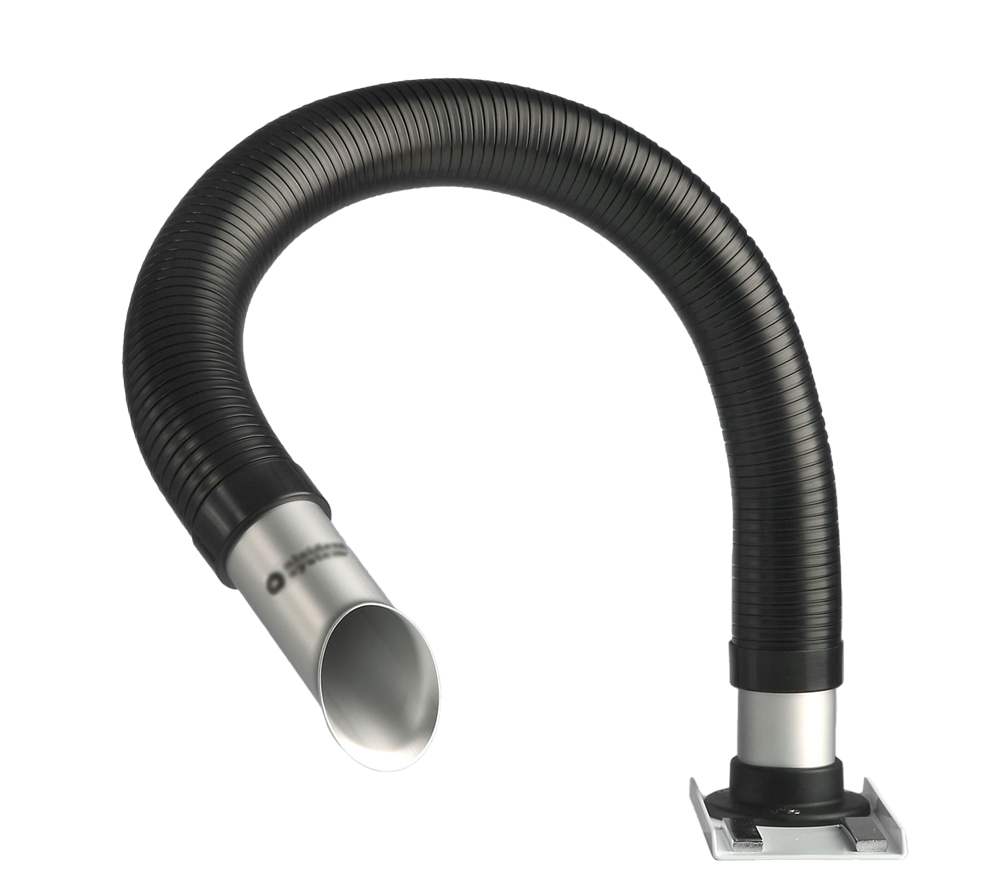

ESD-safe extraction arm for mounting on table, Ø 50mm model with flexible spiral arm and nozzle. The advantage of Ø 50mm is that they are easy to work with.
All components RoHS-compatible.
•Working range 600 mm
•Recommended airflow 45 to 85 m³/h
•Diameter of tube: Ø50 mm
•Tubes and extractor tube made of chromated (TCP) Aluminium - surface 10 μ - in combination with a conductive flexible hose to assure permanent conductivity
•Increased options of positioning due to the flexible hose
•With funnel of the extractor tube in order to increase the capture efficiency
•Approved for ESD-areas according to IEC 61340-5-1:2016
•The extraction arms are equipped with an earth wire with a resistance of 1MΩ
•Acid-proof POP® rivets
