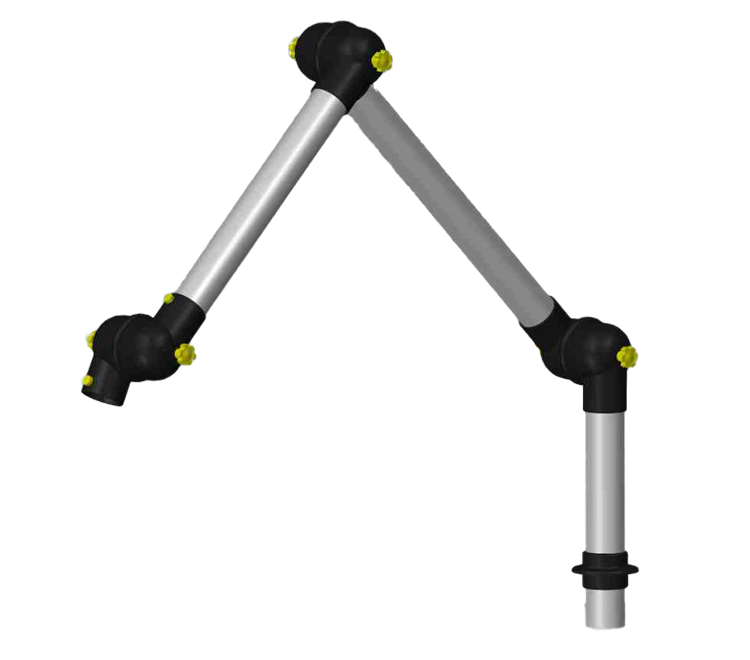

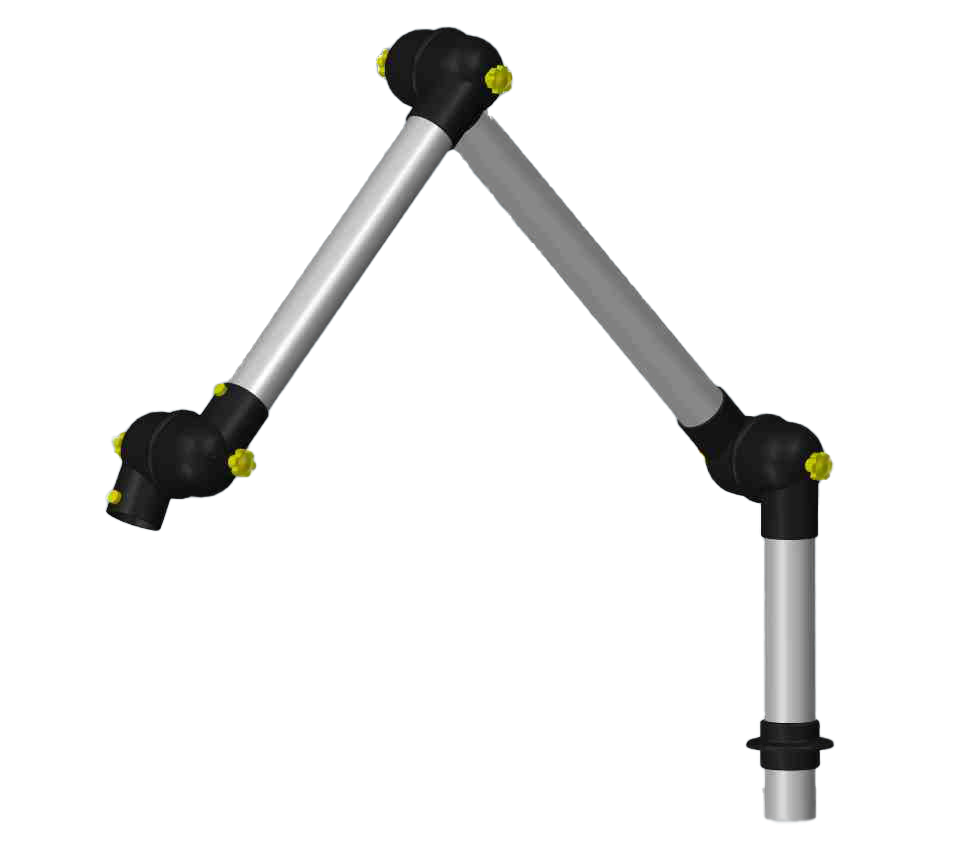

Extraction arm for mounting on table, 50mm diameter model with 3 joints and integrated valve.
All components RoHS-compatible.
•Working range 445 - 945 mm
•Recommended airflow 45 to 85 m³/h
•Diameter of tube: Ø50 mm
•Tubes made of chromated TCP Aluminium to assure permanent conductivity
•Joints made of conductive, shatterproof and chemical resistant polypropylene (PP)
•All O-rings maintenance free and conductive
•Integrated valve. When in an open position out of the flow path to maintain the maximum amount of flow
•All threaded stays, springs and thumbscrews made of acid-proof stainless steel (AISI 316L)
•All hoods can be provided with a protective netting (accessory) to reduce the risk of extracting foreign objects
•Approved for ESD-areas according to IEC 61340-5-1:2016
•The extraction arms are equipped with an earth wire with a resistance of 1MΩ
•Dismantling of the arm without tools for cleaning
Accessory: Extractor Tube no. 5L1-5021-6
