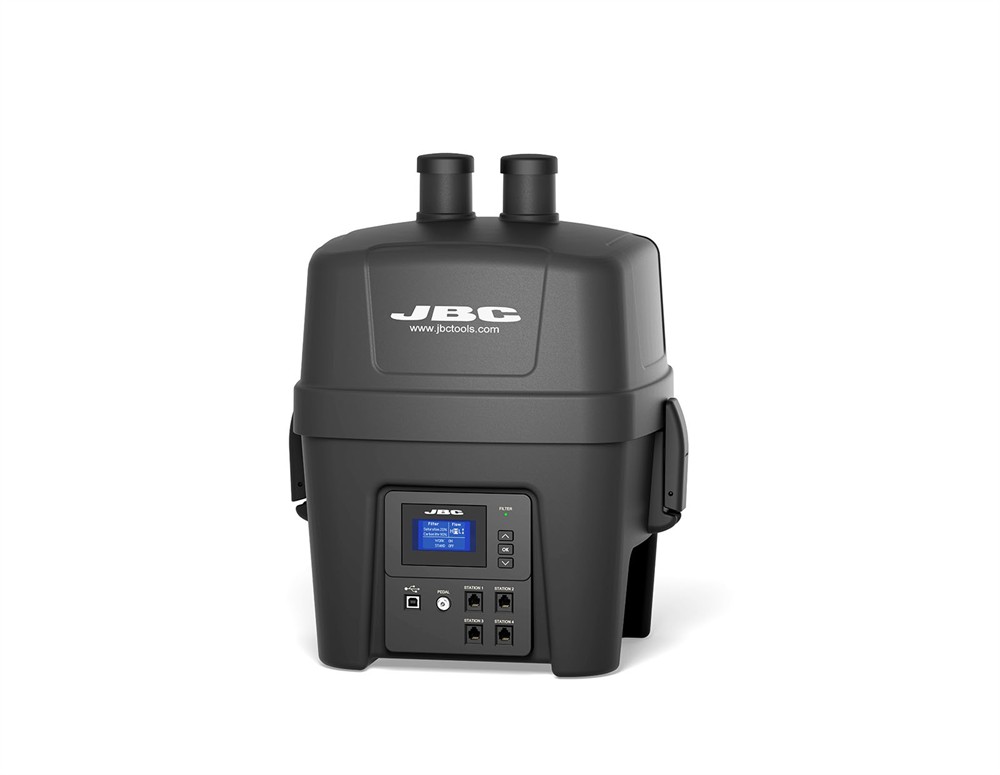

FAE1 is the most effective solution to avoid exposure to solder fumes. FAE1 only operates when soldering and features a unique vacuum system integrated into the stand.
Each arm offers 80 m³/h aspiration, optimizing fume extraction for two workbenches. It surpasses industry standards, ensuring higher air quality and compliance.
It consists of FAE1110 Pre-filter and FAE1100 Filter (HEPA H13 + Carbon). This three-layered system achieves a certified efficiency of 99.95% in filtering soldering fumes, meeting EN 1822 standards.
FAE1 can be controlled via JBC Stations, a pedal, a robotic system or a PC.
It has 3 predefined levels of aspiration: low, medium and high. It also features a custom mode where the airflow can be set within the minimum (10%) and maximum rates (100%).
PRODUCT COMPOSITION
1 FAE1 Fume Extractor with FAE1100 for 1 Workbench
SPECIFICATIONS
Max. flow rate
180m3/h (106 CFM)
Max. vacuum
3.2 KPa (0.46 psi)
ESD safe
Meet ANSI/ESD S20.20-2014
Pre-filter
Medium dust filter M5 (EN 779)
Compact filters
HEPA filter H13 (EN 1822)
Pedal connector
Connections
Output peak power
95W. Fuse 2A (100 V)
Unit
380 x 340 x 475 mm / 10.87 kg.
Package
425 x 425 x 545 mm / 12.90 kg.
