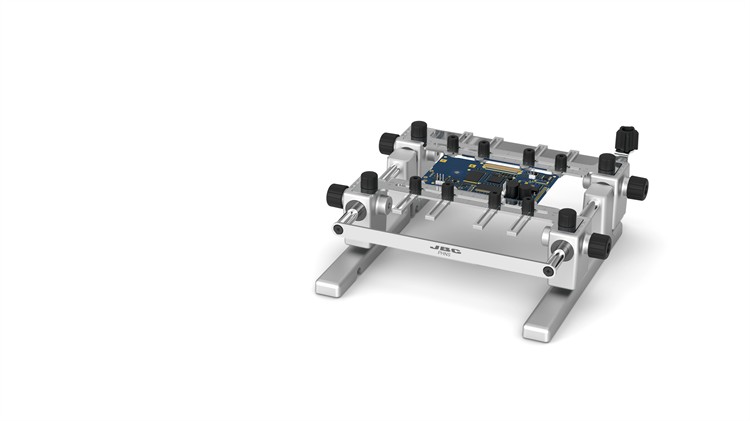

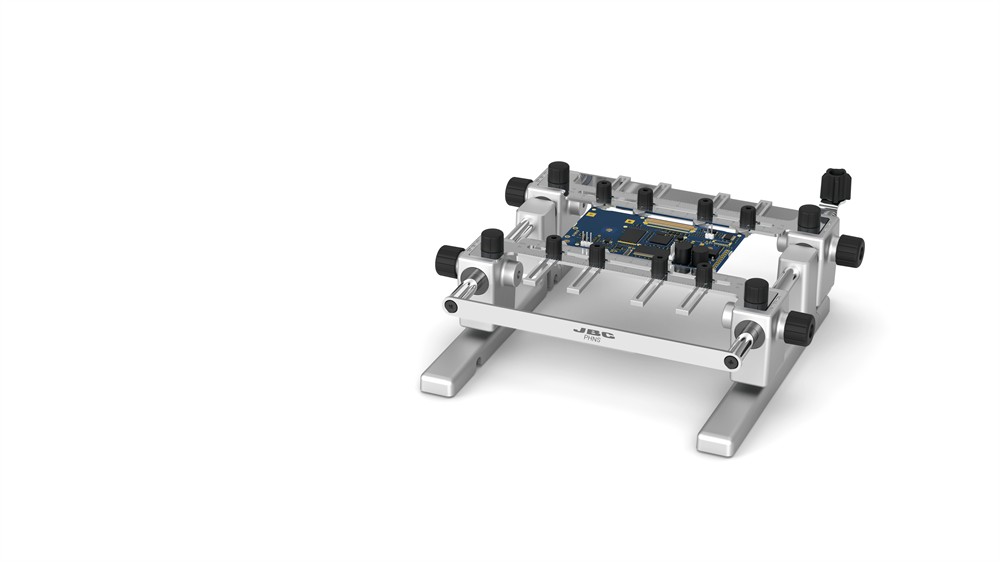

This support is perfectly adaptable to any type of small PCB up to 108 x 70 mm / 4.25 x 2.71 in by means of its many adjustable elements.
It allows fasteasy and precise PCB changingguaranteeing a proper positioning and isideal for repetitive soldering jobs. This means saving time and optimizing workflow.
It provides 3 heights. When combined with PHNE Preheater its built-in slots ensures precise board-preheater alignment to always heat the same area.
SPECIFICATIONS
ESD safe connector
Net weight
1,90 kg (4.19lb)
Low position
238 x 237 x 75 mm
High position
238 x 237 x 96 mm
Max. PCB thickness
6 mm / 0.236 in
Package
280 x 280 x 164 mm / 2.4 kg
11.02 x 11.02 x 6.45 / 5.29 lb
