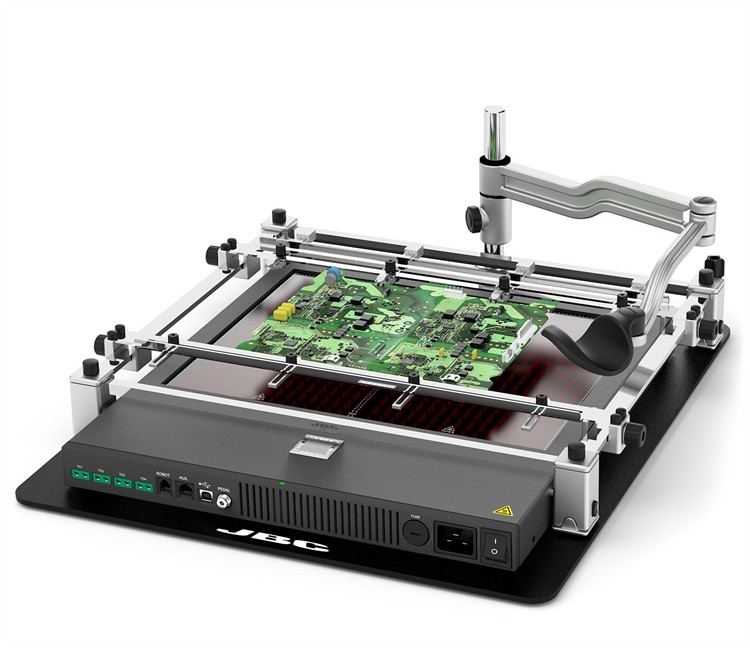

This solution facilitates complete rework of medium / large PCBAs, such as the ones commonly used in laptops or PCB panels.
Matchless reliability in temperature accuracy and control of the PCBA so that no component is damaged.
It includes:
• PHBE Preheater indispensable for avoiding thermal shock on multilayer PCBAs while reworking. It features a heating area of 360 x 277 mm / 14.2 x 10.9 in.
• PHBS Support for PCBs allowing fast, easy and precise PCB changing, guaranteeing proper positioning, ideal for repetitive soldering jobs.
• RHB Articulated Hand Rest providing a point of support for the hand close to the working zone. It makes the work more comfortable and reduces fatigue, ensuring precise working processes.
PRODUCT COMPOSITION
SPECIFICATIONS
Peak power
1800W (120V & 230V)
Selectable temperature
50 to 250 ºC / 120 to 482 ºF
Heating area
180 x 277 mm / 7.1 x 10.9 in - 1 zone
360 x 277 mm / 14.2 x 10.9 in -2 zones
Type K TC connector
4 for Control & Protection
Profiles
22 (up to 16 steps for each)
Set temperature profiles
3 profiles (2, 3 or 4 steps)
Maximum work time
50 min or indefinite
ESD safe
Meet ANSI/ESD S20.20-2021
Robot connector
Remote control
Aux. connector
Console connection
Pedal connector
Connect a pedal (ref. P-005) to control the heater
Rework Bench
550 x 480 x 210 mm / 21.83 kg.
