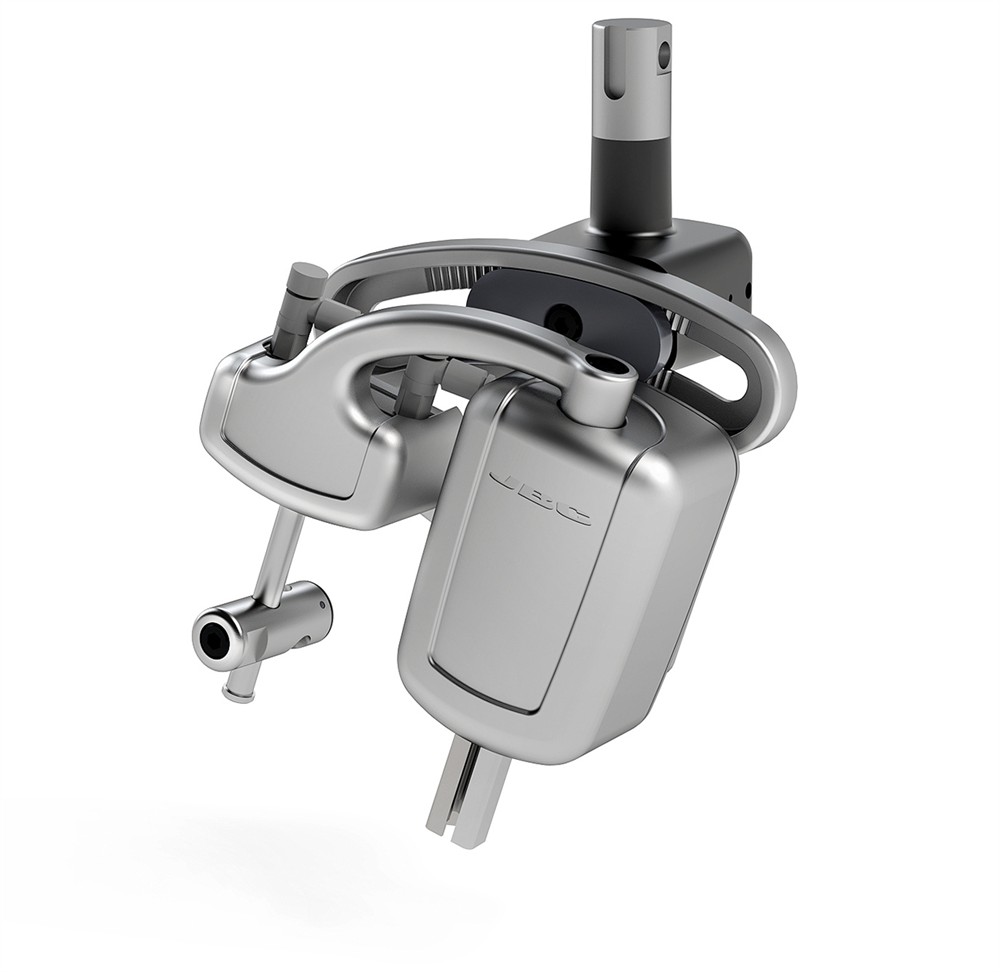

Used for General Soldering applications.
In combination with the CSR Cartridge Exchangerit allows a fast and automatic cartridge exchange when cartridges are worn out or when different tip shapes are needed in the same soldering process to achieve the highest quality on each soldering point.
It features a buffer to prevent damaging the PCB by an excessive pressure during soldering process.
The SFR Solder Feeder can be assembled and the Dispensing Nozzle Actuator allows dispensing tube rotation to facilitate tip cleaning with CLRP Automatic Tip Cleaner.
TRA245 is controlled by UCR245 Control Unit and works with R245 and R245L Cartridge Ranges.
SPECIFICATIONS
Cartridge compatibility
Control Box compatibility
Buffer stroke
5mm (0.197 in)
Flange diameter for Head Assembly
20 mm (0.787 in)
Operating pressure
1.5 to 7 bar (20 to 100 psi)
Applicable tubing diam.
4 mm (0.157 in)
