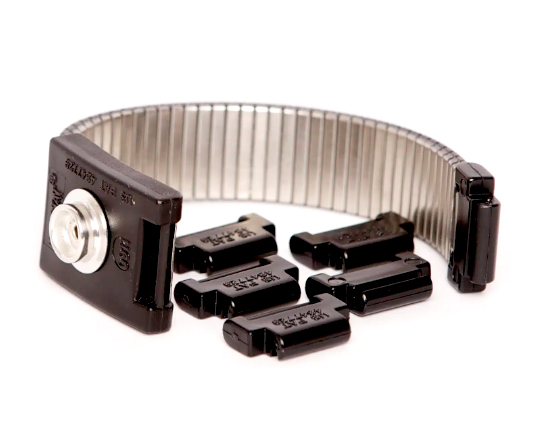

Premium quality, adjustable stainless steel ESD wrist strap with slot and slide clip attachment,
designed to be worn for personnel grounding in an ESD controlled environment.
Supplied with 10mm male stud for grounding cord connection.
Metal band is constructed with a hypo-allergenic jewellery grade stainless steel with a plastic insulation.

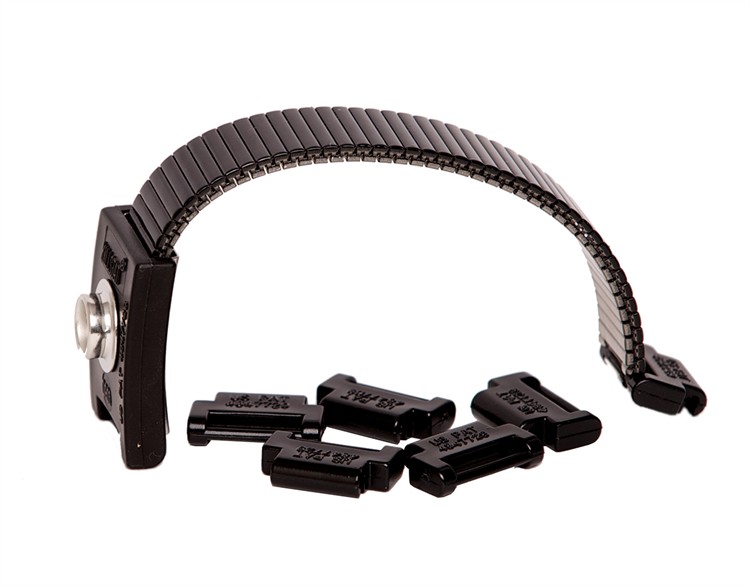

Available in blue or black.
One size fits all.
Compliant to the IEC 61340-5-1 Standard.
Specification:
- Band construction and coating: Hypo-allergenic jewellery grade stainless-steel with plastic insulation.
Outer surface is insulative while inner surface is conductive.
- Plastic parts: Static dissipative material.
- Circumference size: 160-200mm.
- Electrical properties:- Band’s outer surface: Insulated at 500V.
- Electrical properties:- Band’s inner surface: 150 ohms per inch max.
- Electrical properties:- Snap terminal resistance: The snap shall be in good electrical contact with the inner layer of the band.
- Breakaway force: 1 to 5 lbs. of pull away force is required to disconnect snap into normal disconnect direction.
- Termination: Metal band assembled with ergo-clean buckles and 10mm male snap.
- Hardware: All metal parts shall show no evidence of corrosion and rust after 24 hours submersion to salt solution.
Preferably made from stainless steel or brass alloy plated with nickel.
