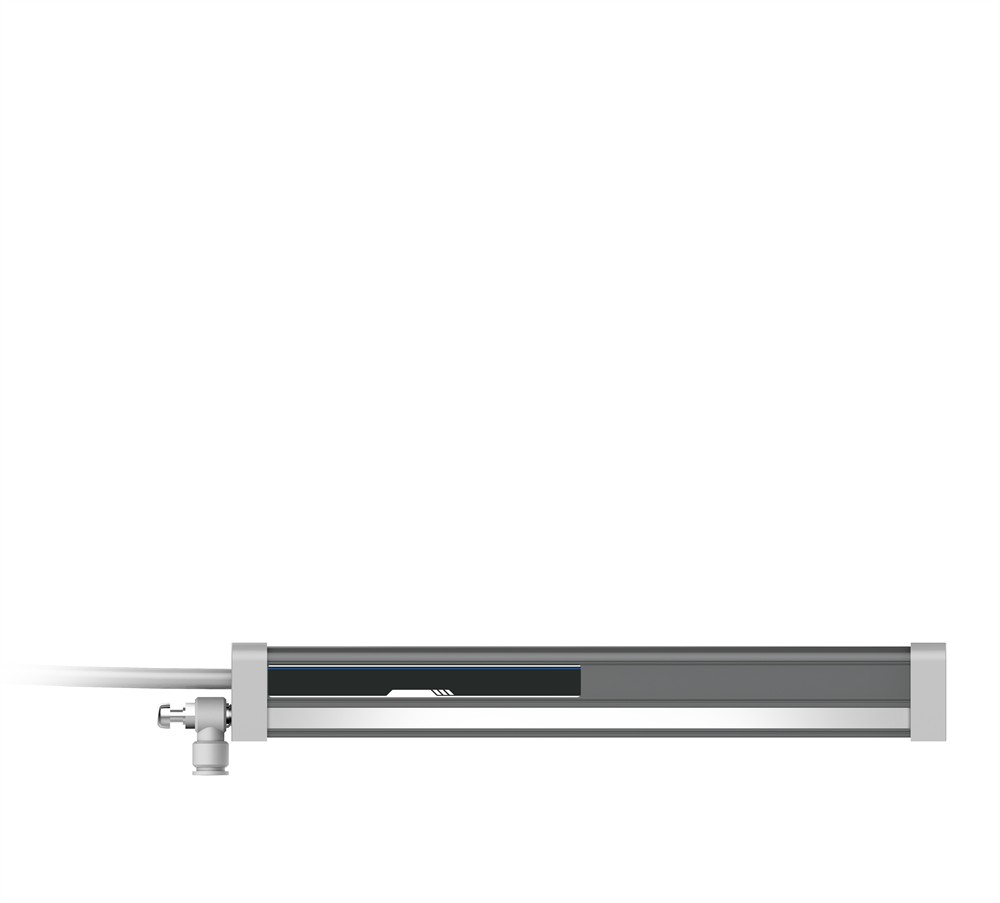

The Ion Bar is a static eliminator that operates using industrial frequency AC high voltage. When this voltage passes through an impedance coupling device, it energizes a special emitting electrode, causing air molecules to ionize and produce both positive and negative ions. These charged particles are then transported by compressed air to the target surface, where they neutralize any electrostatic charges, ensuring effective removal of static electricity. This method provides a dependable and efficient solution for controlling static in industrial environments.
Features:
- Bar-type, horizontal static eliminator: Designed for horizontal application, this bar-type device effectively neutralizes static charges on flat surfaces.
- Compact and aesthetic design: The body of the bar is small and visually appealing, making it suitable for various industrial environments.
- High-voltage, low-current operation: It operates in a high-voltage state with micro-current (at the μA level), ensuring energy efficiency and safe operation.
- Anti-shock function: The device is equipped with a safety feature that prevents accidental electric shocks, protecting users from injury.
- Adjustable installation: The back of the bar is designed with a special slot, allowing the installation bolts to move, making it easy to adjust during setup.
SPECIFICATION:
- Discharge range: L*W*H（150mm→3000mm）*300mm*600mm
- Installation distance: 100→600mm
- Discharge speed: ≤2.5S (Working distance:300mm, air pressure:0.3MPa)
- Ion balance: ≤|±150V|（AVG）
- Compressed air connector: Φ8-G1/8 Grey
- Working temperature: 0℃ - 50℃
- Dimensions: L*W*H（150mm→3000mm）*28.6mm*38.7mm
OBS! Power supply not included! Sold separately. art: 1155-J004
