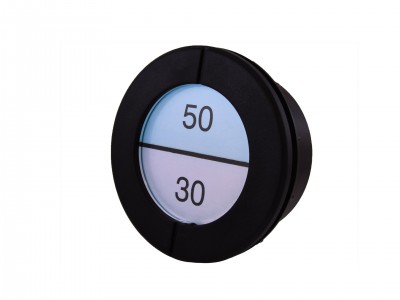

We offer a range of low cost polycarbonate panel mounting desiccators which are chemical resistant to alcohols, ethers, Hydrocarbons, weak acid and bases. All incorporate humidity indicators which visually show when the unit needs replacing.
All units can be used on IP66/IP67 enclosures.
Most units are supplied with an O-ring and back nut.
Indikator levels: 30/50%
MATERIAL: Plastic (Polycarbonate).
OPERATING TEMPERATURE:
Maximum 70°C
Minimum -40°C
Reactivate at 105°C
ENVIRONMENTAL PROTECTION: Resistant to Alcohols, Ethers,
Hydrocarbons, weak acids and bases.
DESICCANT CONTENT: 50 grammes Nominal
APPLICATION VOLUME (Typical)
Example 1: Enclosure specification IP67
A typical working volume of 50 litres equates to a desiccant life of 6 to 9 months.
Example 2: Enclosure specification IP55
A typical working volume of 50 litres equates to a desiccant life of 3 to 6 months.
REACTIVATION: 4 hours in a ventilated oven at 105°C.
Caution! allow to cool in a sealed container.
MAXIMUM PRESSURE: 1 bar gauge
MAXIMUM VACUUM: 500 Torr (-5 PSI)
MAXIMUM LEAK RATE: 0.01cc/sec

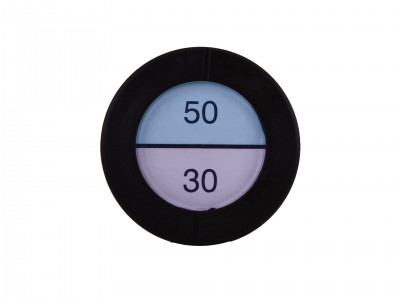

HUMIDITY INDICATING LEVEL:
30% RH @ 20°C.
50% RH @ 20°C.
TIGHTENING TOURQUE: 2Nm
PACKAGING: Metal foil laminate with sachet protection
for a minimum 2 year shelf life.
