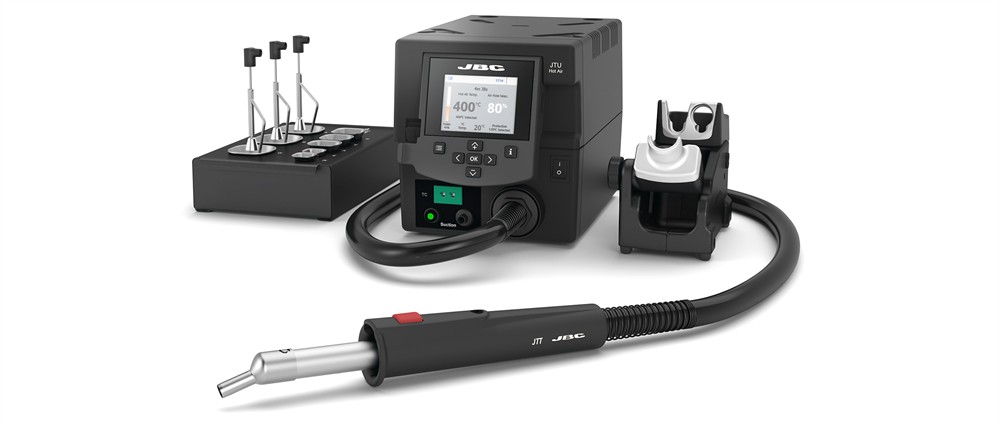

The JTSE is a high powered hot air Station capable of reworking all types of SMDs. Watch video for examples.
The combination of the exclusive JBC hot air system with protectors, tripods and extractors ensures desoldering components easily and safety.
Connecting an external thermocouple provides a high-precise close-loop control of the component/PCB during the rework process or can also be used to protect a component or a specific area of the PCB.
As all the JBC Stations, the JTSE has a menu with more than 10 parameters to customise the control unit.
PRODUCT COMPOSITION
SPECIFICATIONS
Selectable temperature
150 to 450 °C / 300 to 840 °F
Air flow regulation
5 to 50 SLPM
Vacuum
30% / 228 mmHg / 9 inHg
Profiles
25 (up to 10 steps for each), 1 preset profile
Type K TC connector
1 for Control & Protection
ESD safe
Meet ANSI / ESD S20.20-2021
Equipotential bonding
Connection to EPA
RJ12 Connector
Remote control or FAE Fume Extractor connection
Pedal connector
Tool control
Control Unit
230 x 148 x 160 mm / 4.93 kg.
