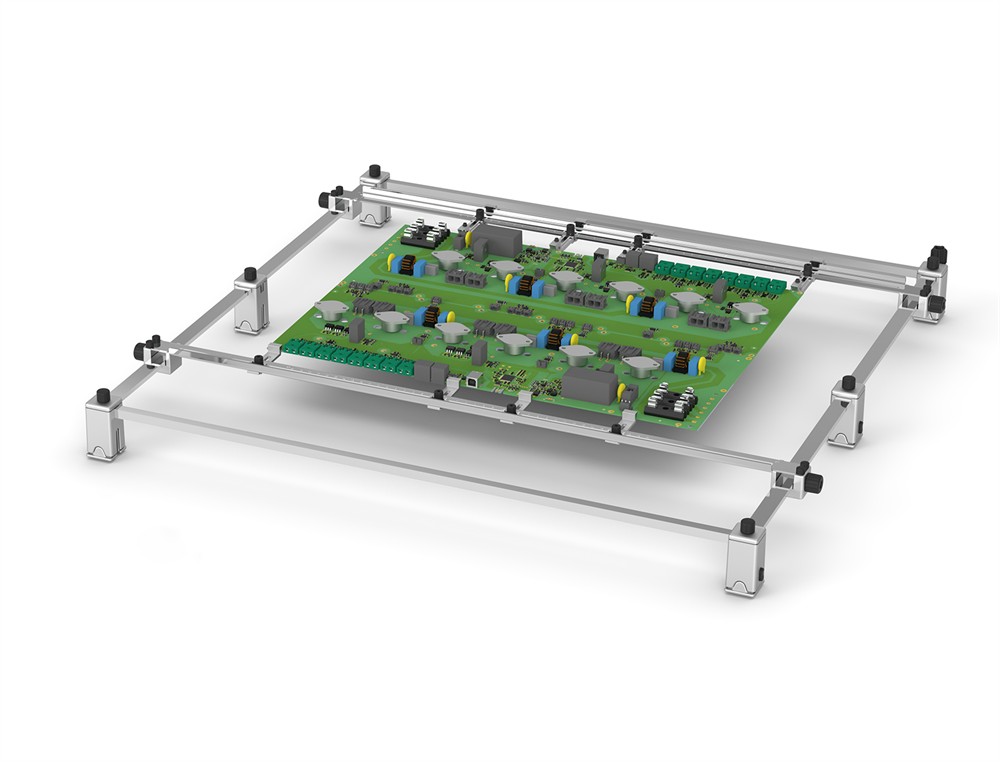

This support is perfectly adaptable to any type of big-sized PCB up to 510 x 610 mm / 20 x 24 in. by means of its many adjustable elements.
It allows fast, easy and precise PCB changing, guaranteeing a proper positioning and is ideal for repetitive soldering jobs. This means saving time and optimizing workflow.
It provides 3 heights.

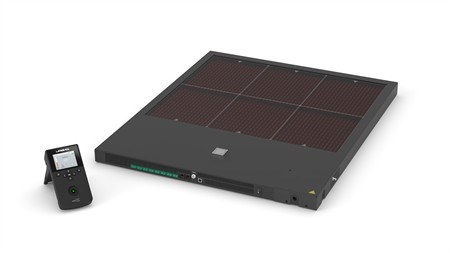

When combined with the PHXLE Preheater its built-in slots ensures precise board-preheater alignment to always heat the same area. It is also possible to use the PH Metallic PCB Support Range for your working level. Arranging them between the board and the Preheater stabilizes and prevents the PCB deflection.
SPECIFICATIONS
ESD safe connector
Low position
75.3 x 73.7 x 7.8 cm
High position
75.3 x 73.7 x 9.8 cm
Package
82 x 80 x 23 cm / 23 kg
