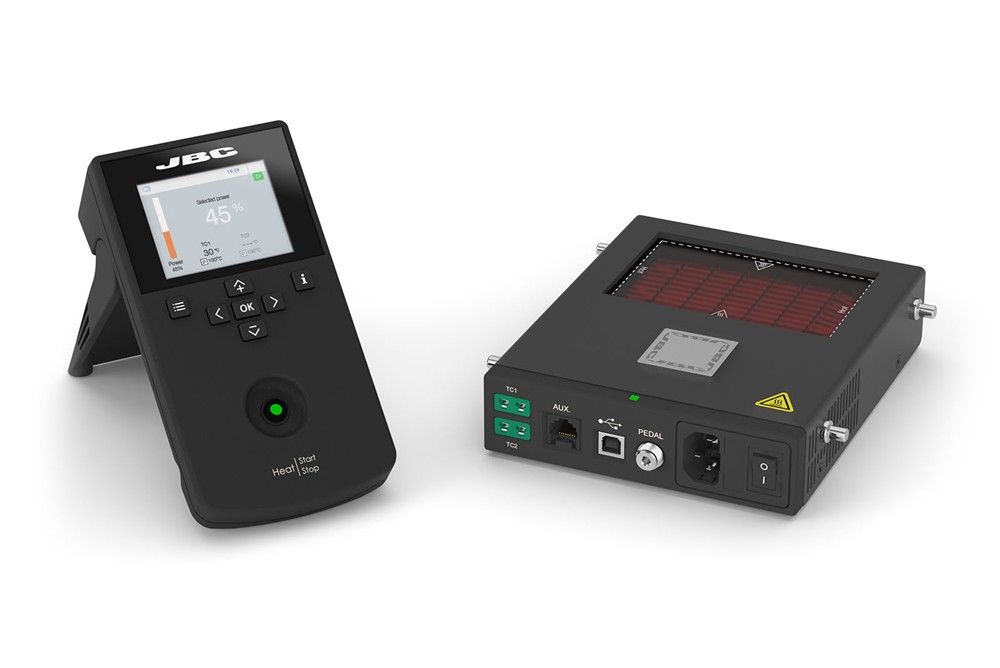

Indispensable for avoiding thermal shock on multilayer PCBs while reworking. It is a complete solution to rework small PCBAssuch as the ones commonly used in smartphones.
It features a heating area of 108 x 70 mm / 4 x 3 in.
Matchless reliability in temperature accuracy and control of the PCBA so that no component is damaged.
It features three work modes: Power Mode allows working at a fixed power level with the option of using protection thermocouple.
Temperature Mode keeps the PCBA at a selected temperatureusing the regulation thermocouple andoptionallyprotection thermocouples.
Profile Mode allows control of the heating rate of the PCBA by the use of a control and protection thermocouplewithout exceeding the recommended limit levels in each application.
It features 25 profiles of temperature.
Two thermocouple can be connected in any of the three work modes.
SPECIFICATIONS
Peak power
Selectable temperature
50 to 250 ºC / 120 to 482 ºF
Heating area
108 x 70 mm / 4.25 x 2.75 in
Type K TC connector
2 for Control & Protection
Profiles
22 (up to 16 steps for each)
Set temperature profiles
3 profiles (2, 3 or 4 steps)
Maximum work time
50 min or indefinite
ESD safe
Meet ANSI/ESD S20.20-2021
Robot connector
Remote control
Aux. connector
Console connection
Pedal connector
Connect a pedal (ref. P-005) to control the heater
PreHeater Unit
179 x 165 x 42 mm / 1.20 kg.
