Indispensable for avoiding thermal shock on multilayer PCBs while reworking.

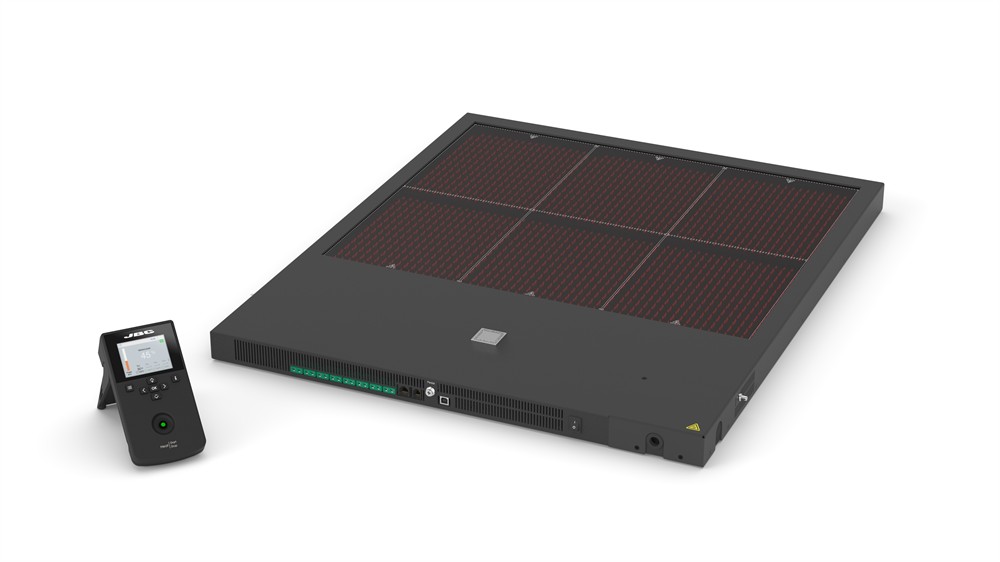

It is used for preheating big-sized PCBAs such as communications boardsairplanesetc.and ideal for repetitive soldering jobs. It features a heating area of 510 x 610 mm / 20.07 x 24 in. with 6 independent work zones (255 x 203 mm / 10.04 x 8 in) to be switched on/off.
Matchless reliability in temperature accuracy and control of the PCBA so that no component is damaged.
It features three work modes: Power Mode allows working at a fixed power level with the option of using protection thermocouple.
Temperature Mode keeps the PCBA at a selected temperatureusing the regulation thermocouple andoptionallyprotection thermocouples. Profile Mode allows control of the heating rate of the PCBA by the use of a control and protection thermocouplewithout exceeding the recommended limit levels in each application.
It features 25 profiles of temperature. Up to eight thermocouples can be connected to which enables the operator to work in any of the three work modes.

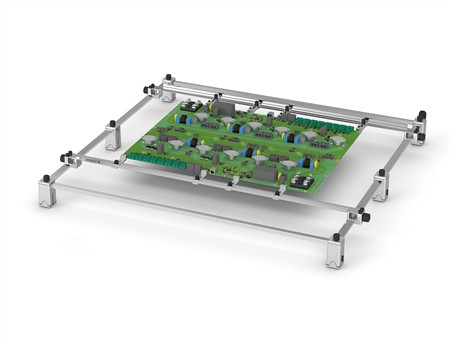

PRODUCT COMPOSITION
SPECIFICATIONS
Selectable temperature
50 to 250 ºC / 120 to 482 ºF
Heating area
255 x 203 mm / 10.04 x 8 in - 1 zone
510 x 610 mm / 20 x 24 in - 6 zones
Type K TC connector
8 for Control & Protection
Profiles
22 (up to 16 steps for each)
Set temperature profiles
3 profiles (2,3 or 4 steps)
Maximum work time
50 min or indefinite
ESD safe
Meet ANSI/ESD S20.20-2021
Robot connector
Remote control
Aux. connector
Console connection
Pedal connector
Connect a pedal (ref. P-005) to control the heater
PreHeater Unit
790 x 664 x 42 mm / 19.30 kg.
Package
1200 x 800 x 374 mm / 67.00 kg.
