It performs up to 500 medium-sized SMD soldering joints per charge.
Perfect for continuous and intensive work with larger components or ones connected to ground planes.
Charging the handle is quick and effortless thanks to the built-in base charger*.
Features:
• New Design! The increased diameter of the green grip, enhances the user comfort and handling precision.
To perfectly lie in the operator`s hand, making the soldering process even more comfortable.
• Fully compatible with C210 Cartridge Range.
• Power safe mode that can be activated by putting on the cap.
• JBC Intelligent Heat Management ensures an extremely quick temperature recovery, reaching 350°C in less than 3 seconds.
• From any device with Bluetooth, you can remotely control and configure the tool parameters by using the app.
* If you do not have a charging base, you must start by acquiring B·IRON 500.
*Cartridge not included
PRODUCT COMPOSITION

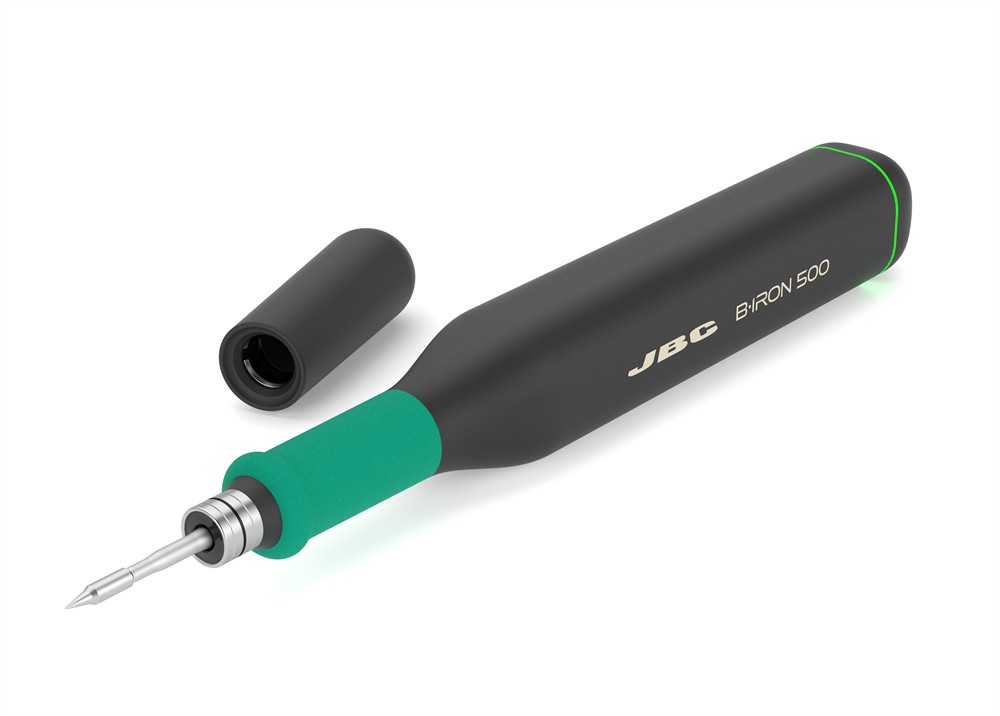

1 B·500 Handle for B·IRON
(cartridge not included)
SPECIFICATIONS
| Peak power |
24 W |
| Selectable temperature |
100 to 450ºC / 210 to 840ºF |
| Temperature accuracy |
± 3% (Using reference cartridge) |
| Battery |
Li-Ion 7.4V / 750mAh |
| Charge time |
60 minutes |
| ESD safe |
Meet ANSI/ESD S20.20-2021 |
| Connections |
Bluetooth Low Energy (BLE) |
| Ambient Operating Temp |
10 - 50 °C / 50 - 122 °F |
| Tool Weight |
70 g / 0.154 lb |
| |
|
