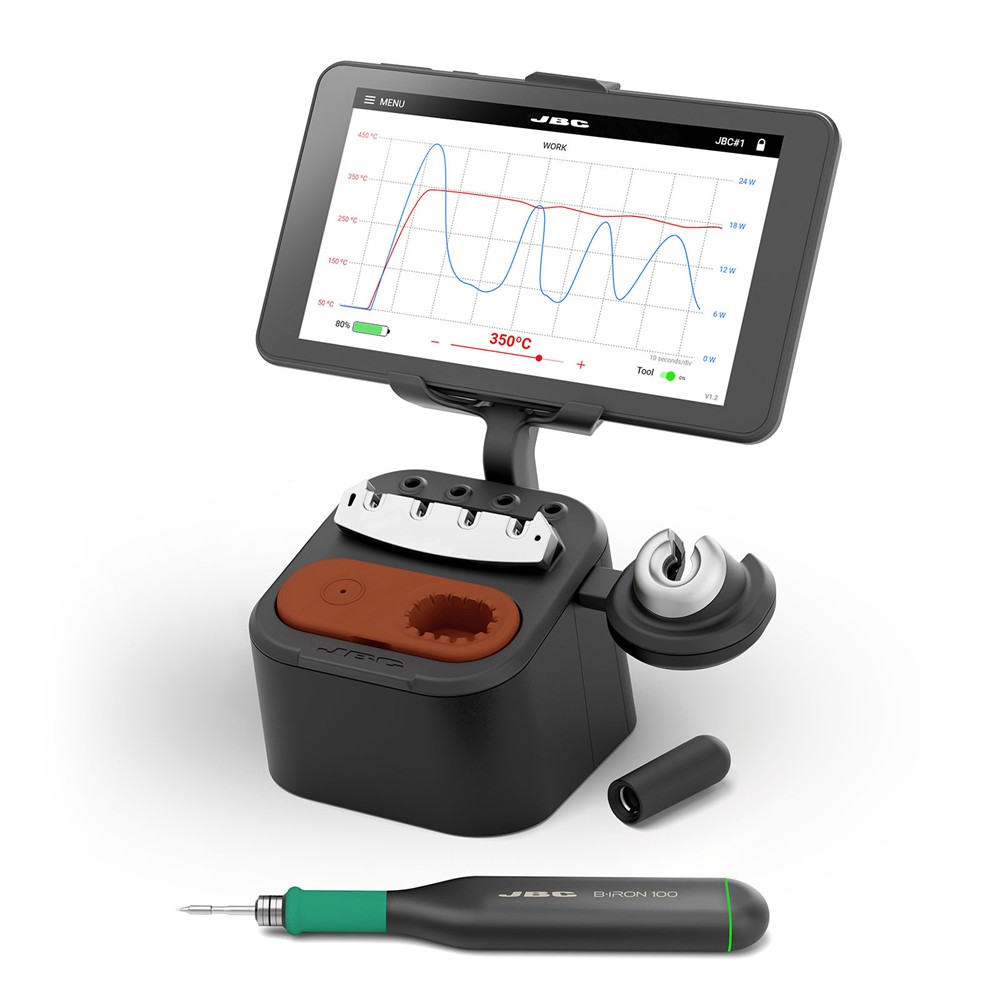

B·IRON 100 features a lightweight and ergonomic tool. It performs up to 100 SMD soldering joints per charge.
Specially designed for R&D and individual jobs.
Included:
• B·IRON 100 TOOL Precision Handle fully compatible with C210 Cartridge Range. It also has a power safe mode that can be activated by putting on the cap.
• Charging Base charges the tool automatically when placed in the Tool Holder.
It also features Quick Cartridge Exchanger, which enables a safe and easy cartridge change, Tip Cleaner with Brass Wool and Antisplash Membrane.
• PDS Portable Display 7" with B·IRON App to configure and control the system.
* Also available without display, as you can use your own device. Contact us for more information.
PRODUCT COMPOSITION
1 PDS Portable Display 7" for B·IRON
SPECIFICATIONS
Input voltage
100 V - 240 V 50/60 Hz
Tool output
12 V / 1000 mA
Battery
Li-Ion 7.4V / 180 mAh
Selectable temperature
100 to 450ºC / 210 to 840ºF
Idle temp. stability (still air)
±1.5 °C / ±3 °F
Temperature accuracy
± 3% (Using reference cartridge)
Connections
Bluetooth Low Energy (BLE)
Ambient Operating Temp
10 - 50 °C / 50 - 122 °F
Tool Weight
35 g / 0.077 lb
Package
223 x 265 x 160 mm / 2.52 kg.
