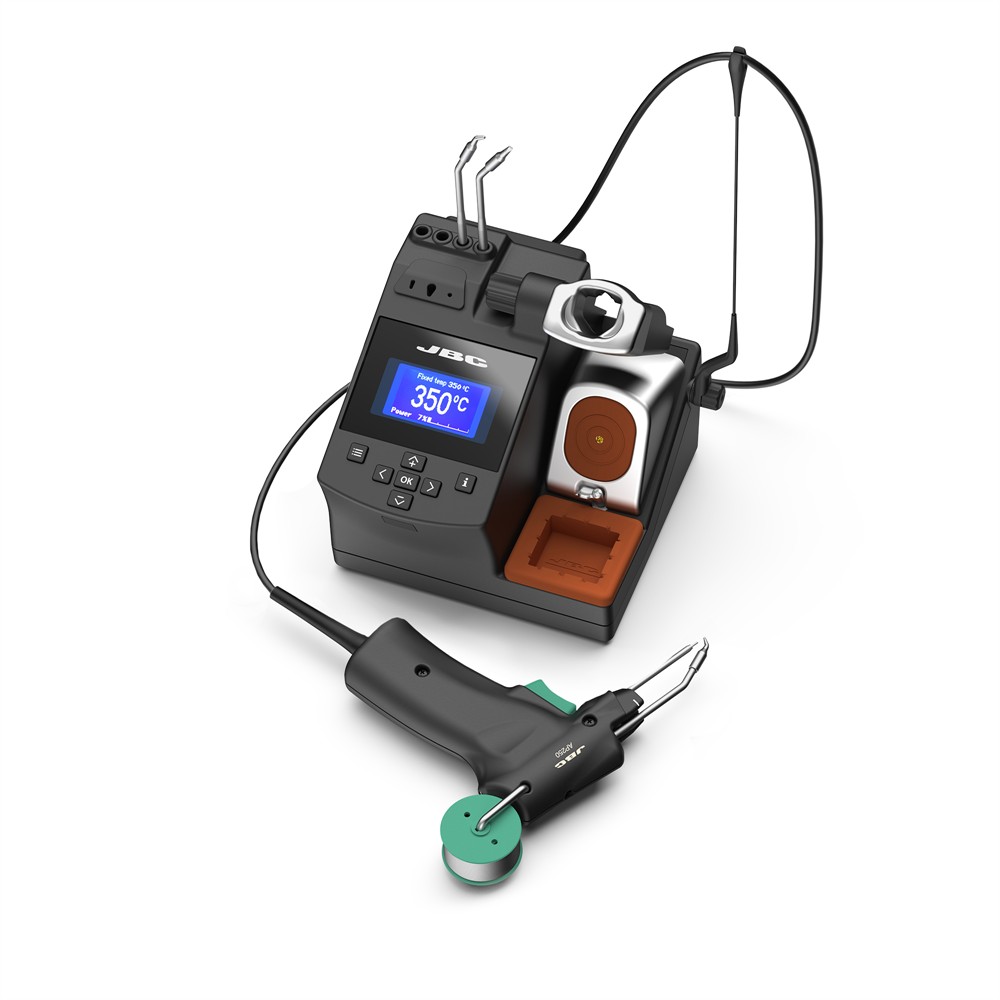

Designed to for those applications requiring a free hand. Ideal for soldering cables, connectors, etc.
It provides all the advantages of the JBC Most Efficient Soldering System in the smallest footprint:
• JBC Intelligent Heat Management provides the best soldering quality and with, Sleep & Hibernation Modes extend tip life till 5 times.
• Complete with the Stand, Tip Cleaning System and Cartridge Holder.
• Connectivity:
- - Fume Extractor
- - Data Download
- - Software Updates
- - Traceability
• Includes AP250 Manual-Feed Soldering Iron that works with the wide range of C250 Cartridges.
Check out more information about features Automatic-Feed Stations.
SPECIFICATIONS
Selectable temperature
90 - 450 °C / 190 - 840 °F
Idle temp. stability (still air)
±1.5 ºC / ±3 ºF (Meets and exceed IPC J-STD-001)
Temperature accuracy
±3 % (Using reference cartridge)
Temp. adjustment
±50 ºC / ±90 ºF (Through station menu setting)
Tip-to-ground resistance
<2 ohms
Tip-to-ground voltage
<2 mV RMS
FAE / Robot connector
Remote control or FAE Fume Extractor connection
Solder wire diameter
from 0.8 - 1 mm / 0.03 - 0.04 in
from 1.1 - 1.5 mm / 0.04 - 0.06 in
ESD safe
Meet ANSI/ESD S20.20-2021
Control Unit
170 x 176 x 145 mm / 2.91 kg.
