Newly Upgraded!
More intuitive and well-connected

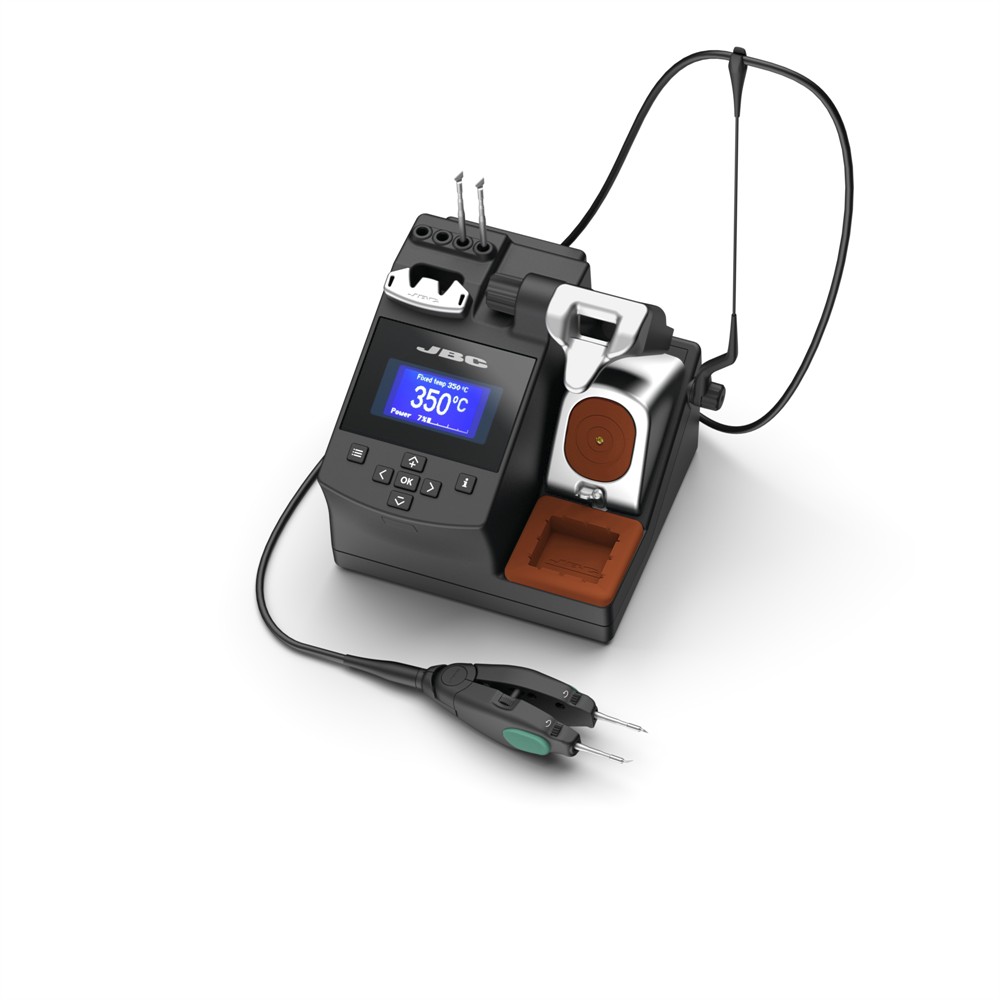

The best solution for soldering and rework of SMD components such as chips, small/medium SOP components and dual line components.
Watch video
It uses the AM120-A Adjustable Micro Tweezers for fast and precise SMD rework which requires the highest precision.
The new F version includes:
• Fast and easy configuration of the station thanks to the 7-key keypad.
• Cartridge Holder to store up to four cartridges, as well as Cartridge Extractor and Cable Collector.
• Connectivity to JBC Fume Extractor (connector RJ12).
It provides the best soldering quality thanks to JBC Most Efficient Soldering System and, additionally, the Sleep & Hibernation Modes help to extend the life of tips.
PRODUCT COMPOSITION
1 AM120-A Adjustable Micro Tweezers
(cartridge not included)
SPECIFICATIONS
Selectable Temperature
90 to 450 ºC / 190 to 840 ºF
Idle temp. stability (still air)
±1.5ºC (±3ºF)
Meets and exceed IPC J-STD-001F
Temp accuracy
±3% ( using reference cartridge)
Temp adjustment
±50ºC (±90ºF) Through station menu setting
CONNECTIVITY
USB-B
Software PC / Firmware update
RJ12 Connector
Earthing Fuse
F 1.25A
ESD/EOS
ESD safe
Tip to ground vol./ resist.
Meets and exceed
ANSI/ESD S20.20-2014 IPC J-STD-001F
POWER SUPPLY
Peak power
80 W - 23.5 V
Operating temp. range
10 to 50 ºC / 50 to 122 ºF
DIMENSIONS AND WEIGHT
Compact Stations
170 x 176 x 145 mm / 2.70 kg.
