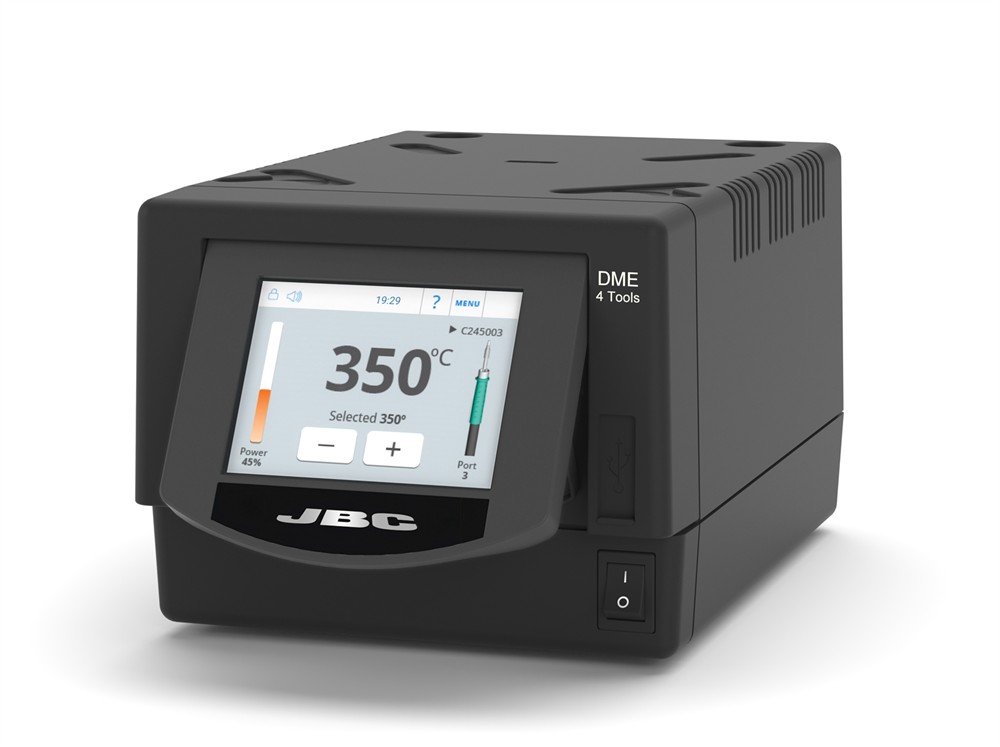

This control unit operates with four tools simultaneously for soldering or desoldering tools and is fully compatible with 10 different JBC Tools delivering up to 150 W per tool.
It works with JBC Exclusive Heating System and Sleep & Hibernation Modes.
Additionally, it integrates all the Excellence Range benefits such as station customization, full control of soldering processes and remote work management.
The control unit features JBC Dynamic Soldering Profile functionality, designed to avoid thermal shock when soldering ceramic chip components like MLCC.
The easy-to-use menu is configurable in 10 different languages: English, German, Spanish, French, Italian, Portuguese, Russian, Japanese, Korean and Chinese.
Additionally, DME provides you with extra applications that support your work: USB microscope, file storage, unit converter, etc. It also enables users to play a video files from a USB device as long as it is in AVI format and in 320x240px.
For a basic working system, you need at least 1 stand, 1 tool and 1 cartridge.
SPECIFICATIONS
| Peak power |
150 W per tool |
| |
|
| Selectable temperature |
90 to 450 ºC / 190 to 840 ºF |
| |
|
| Temperature accuracy |
±3% |
| |
|
| ESD safe |
Meet ANSI/ESD S20.20-2021 |
| |
|
| Equipotential bonding |
Connection to EPA |
| |
|
| Tip-to-ground resistance |
<2 ohms |
| |
|
| Tip-to-ground voltage |
<2 mV RMS |
| |
|
| USB-A |
Firmware update |
| |
Graphics and profile management |
| |
Dino-Lite USB microscope connection |
| |
Compatible models: AM2011 and AM2111 |
| |
|
| USB-B |
PC communications |
| |
|
| FAE Connector |
Remote control or FAE Fume Extractor connection |
| |
|
| LAN |
Ethernet Remote control |
| |
|
| Weight and dimensions |
|
| Control Unit |
232 x 148 x 120 mm / 4.57 kg. |
| |
|
| Package |
258 x 328 x 208 mm / 4.97 kg. |
