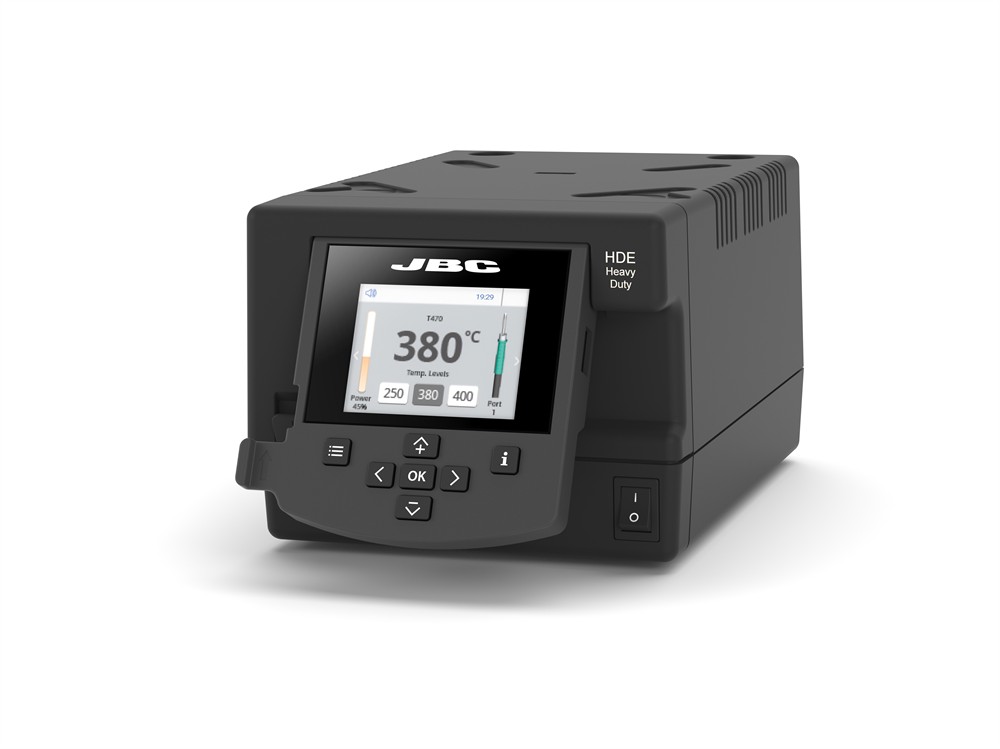

HDE is the most powerful control unit of the JBC Range.
Its new power supply (SMPS) ensures high efficiency and increased performance on soldering applications that require large amount of heat.
It works with JBC Most Efficient Soldering Systemand Sleep & Hibernation Modes. It is compatible with T470 Handles and C470 Cartridge Range.
HT470K Heavy Duty Tweezers Kit is also available providing twice the power ofT470 Handles (it requires 2 HDE Control Units).
SPECIFICATIONS
|
|
| Peak power |
250 W – 42 V |
| |
|
| Selectable temperature |
90 - 500 °C / 190 - 932 °F |
| |
|
| Temperature accuracy |
±3% |
| |
|
| ESD safe |
Meet ANSI/ESD S20.20-2021 |
| |
|
| Equipotential bonding |
Connection to EPA |
| |
|
| Tip-to-ground resistance |
<2 ohms |
| |
|
| Tip-to-ground voltage |
<20 mV RMS |
| |
|
| USB-A |
Firmware update |
| |
Graphics and profiles |
| |
|
| USB-B |
PC communications |
| |
|
| FAE / Robot connector |
Remote control or FAE Fume Extractor connection |
| |
|
| Weight and dimensions |
|
| Control Unit |
232 x 148 x 120 mm / 2.63 kg. |
| |
|
| Package |
258 x 328 x 208 mm / 3.72 kg. |
