Ideal for soldering processes requiring high productivity.
It includes JBC Most Efficient Soldering System.
This control unit is supplied with GALE10V to feed solder wire of Ø 1 mm and is furthermore compatible with solder wires from Ø 0.4 mm up to Ø 1.8 mm, using the respective Solder Wire Guide Kit. It features Solder Wire Perforation, allowing better flux flow and outgassing, thus avoiding projections and Foreign Object Debris (FOD).
ALE250 Automatic-Feed Soldering Iron works with C250 Cartridge Range.
This station can hold a solder reel of up to 2 kg / 4.40 lb.
🔵 Video guides for Automatic-Feed Stations
PRODUCT COMPOSITION

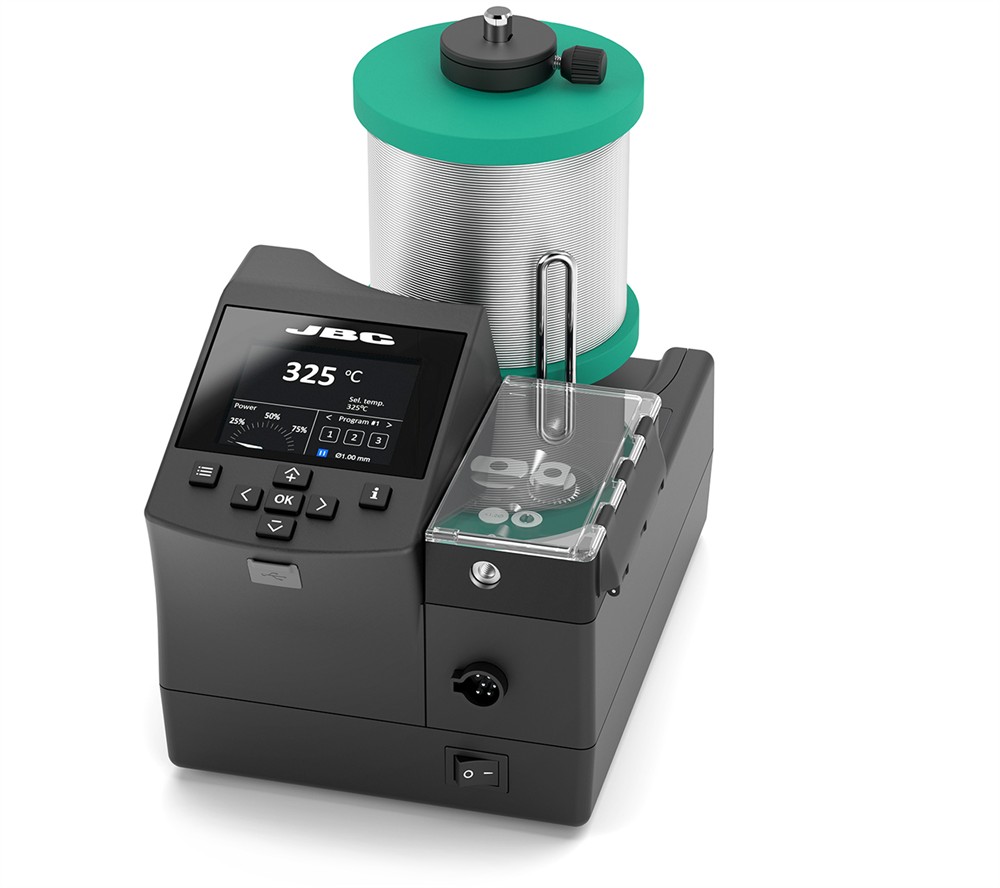

1 ALE Automatic-Feed Control Unit
(guide components assembled)
SPECIFICATIONS
Nominal power
Selectable temperature
90 to 450 ºC / 190 to 840 ºF
Idle temp. stability (still air)
±1.5 ºC / ±3 ºF (Meets and exceeds IPC J-STD-001)
Temperature accuracy
±3 % (Using reference cartridge)
Temp. adjustment
±50 ºC / ±90 ºF (Through station menu settings)
Connections
USB-A Update and files import-export
RJ12 Fume extractor connection
Equipotential bonding
Optional connection to EPA
Tip-to-ground resistance
<2 ohms
Tip-to-ground voltage
<2 mV RMS
ESD safe
Meet ANSI/ESD S20.20
Solder wire diameter
1.0 mm / 0.04 in with GALE10V already assembled
Max. wire length
250 mm / 9.84 in (for discontinuous + program mode)
Min. wire length
0.5 mm / 0.02 in
Max. forward speed
0.5 to 50 mm/s / 0.02 to 1.97 in/s
Max. Backward Function
0.0 to 5.0 mm/s / 0.5 to 0.20 in/s
Program Steps
1 to 3 Steps (for each program)
Pedal connector
Tool control
Compatible Solder Reel
Weight
Diameter
max. 100 mm / 3.94 in
Height
max. 100 mm / 3.94 in
Reel stand axis
Ø 10 mm / Ø 0.4 in
Control Unit
235 x 170 x 112 mm / 5.81 kg.
