Ideal for soldering processes requiring high productivity.
It includes JBC Most Efficient Soldering System.

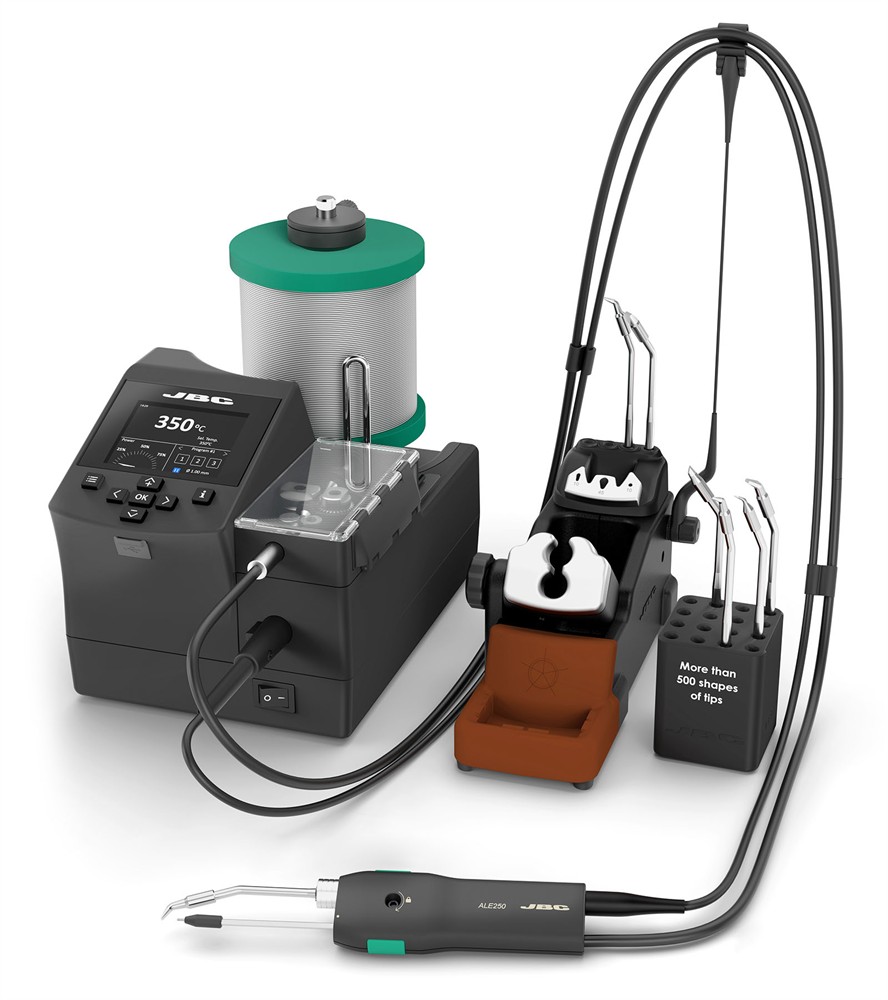

This station is supplied with:
• The new version of ALE250 Automatic-Feed Soldering Iron, featuring a dynamic tool setting making it ideal for reaching different solder joints.
It works with C250, C250E and C245L Cartridge Range.
• GALE10V feeding solder wire with a diameter of Ø1 mm and it is compatible with solder wires from Ø 0.4 mm up to Ø 1.8 mm, using the respective Solder Wire Guide Kit. It features Solder Wire Perforation, allowing better flux flow and outgassing, thus avoiding projections and Foreign Object Debris (FOD).
This station can hold a solder reel of up to 2 kg / 4.40 lb.
• 3 different working modes: Continuous Mode, Discontinuous Mode and Program Mode which allows configuration of dispensed wire speed and length.
• Connectivity: Data download, remote control for traceability and software updates.
🔵 Video guides for Automatic-Feed Stations
PRODUCT COMPOSITION
Weight
up to 2 kg / 4.4 Ib
Diameter
max. 100 mm / 3.94 in
Height
max. 100 mm / 3.94 in
Reel stand axis
Ø 10 mm / Ø 0.4 in
Automatic Feed
235 x 170 x 112 mm / 7.83 kg.
Package
545 x 345 x 275 mm / 8.46 kg.
|
SPECIFICATIONS
Selectable temperature
90 to 450 ºC / 190 to 840 ºF
Solder wire diameter
1.0 mm / 0.04 in with GALE10V already assembled
Max. wire length
250 mm / 9.84 in
Min. wire length
0.5 mm / 0.02 in
ESD safe
Meet ANSI/ESD S20.20-2021
Equipotential bonding
Connection to EPA
Tip-to-ground resistance
<2 ohms
Tip-to-ground voltage
<2 mV RMS
FAE / Robot connector
Remote control or FAE Fume Extractor connection
Pedal connector
Tool control
|
| |
|
| |
|
