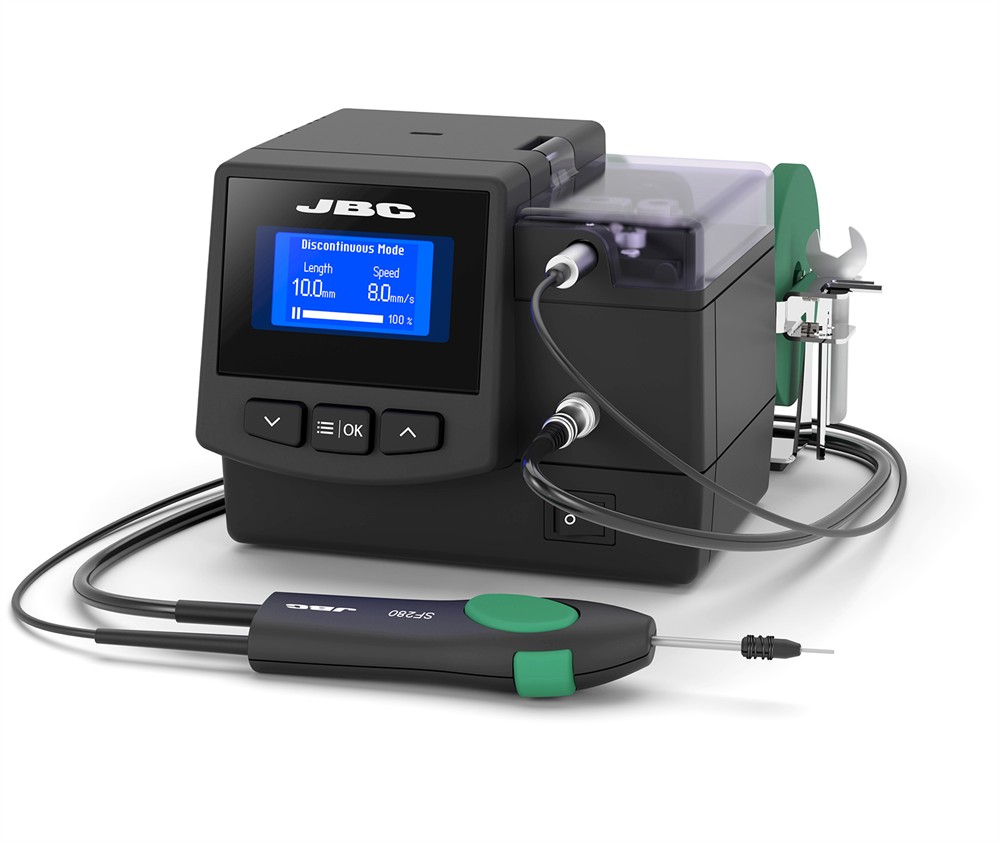

This Solder-Wire Feeder allows you to feed solder wire automatically from any position.
This station is supplied with GSF10V to feed solder wire of Ø 1 mm / 0.040 in and is furthermore compatible with solder wires from Ø 0.38 mm / 0.015 in up to Ø 1.8 mm / 0.073 in, using the respective Solder Wire Guide Kit.
It features Solder Wire Perforation, allowing better flux flow and outgassing, thus avoiding projections and Foreign Object Debris (FOD).
• 3 different working modes:
Continuous Mode, Discontinuous Mode and Program Mode which allows configuration of dispensed wire speed and length
Compatible Guide Sets are also without Solder Wire Perforation available.
PRODUCT COMPOSITION
1 SF Automatic Solder-Wire Feeder Station
SPECIFICATIONS
Solder wire diameter
1mm / 0.04 in with GSF10V
Max. wire length
250 mm / 9.84 in
Max. speed
120 mm/s / 4.72 in/s Forward & Reverse
ESD safe
Meet ANSI/ESD S20.20-2021
Weight
up to 1 kg / 2.2 Ib
Diameter
max. 80 mm / 3.15 in
Height
max. 75 mm / 2.95 in
Reel stand axis
Ø 10 mm / Ø 0.4 in
Automatic Feed
140 x 150 x 120 mm / 2.32 kg.
