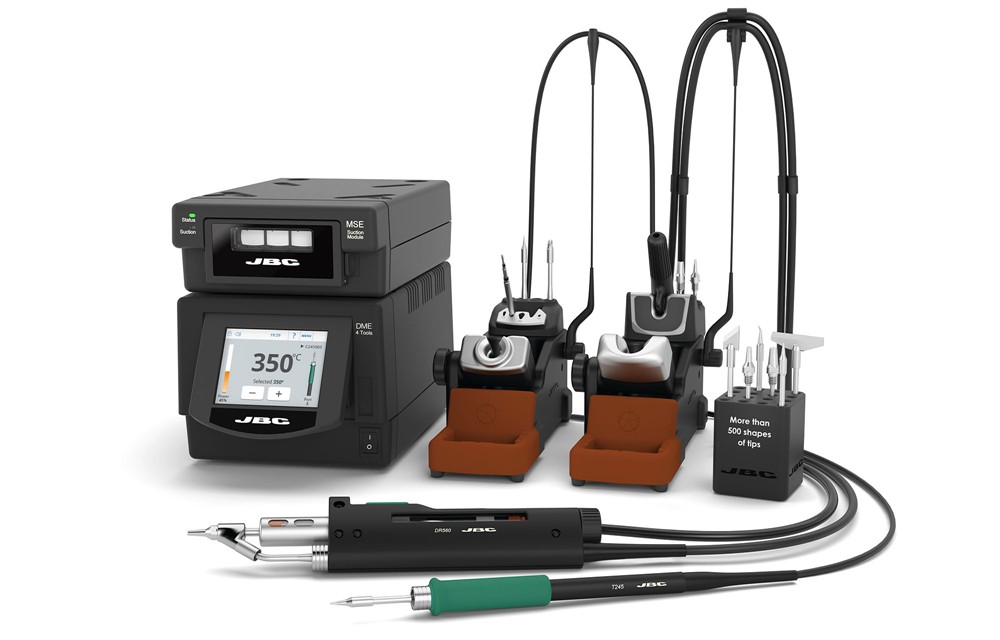

Equipped with
MSE Module, DMSE Station offers a
versatile solution for SMD and high-power applications. Its
powerful suction module excels in desoldering through-hole components and removing excess solder after SMD rework, ensuring clean, precise results across a wide range of soldering tasks.
It offers the highest soldering quality thanks to JBC Most Efficient Soldering System, with Intelligent Heat Management to extend tip life and reduce energy consumption.
Includes:
• DME 4-Tool Control Unit managing up to 4 tools simultaneously and fully compatible with 10 different JBC Tools, delivering up to 150 W per tool.
• T245 General Purpose Handle which works with C245 Cartridge Range.
• DR560 Desoldering Iron which works with C560 Tip Range.
• MSE Electric Desoldering Module offering exceptional suction power for a complete desoldering process.
PRODUCT COMPOSITION
SPECIFICATIONS
Peak power
150 W per tool
Selectable temperature
90 to 450 ºC / 190 to 840 ºF
Idle temp. stability (still air)
±1.5ºC / ±3ºF Meets and exceed IPC J-STD-001F
Vacuum
85% / 640 mmHg / 25.4 inHg
Temperature accuracy
±3% using reference cartridge
ESD safe
Meet ANSI/ESD S20.20-2021
Equipotential bonding
Connection to EPA
Temp. adjustment
±50ºC / ±90ºF Through station settings menu
Tip-to-ground resistance
<2 ohms
Tip-to-ground voltage
<2 mV RMS
Graphics and profile management
Dino-Lite USB microscope connection
Compatible models: AM2011 and AM2111
FAE Connector
Remote control or FAE Fume Extractor connection
LAN
Ethernet Remote control
Control Unit
232 x 148 x 120 mm / 10.33 kg.
