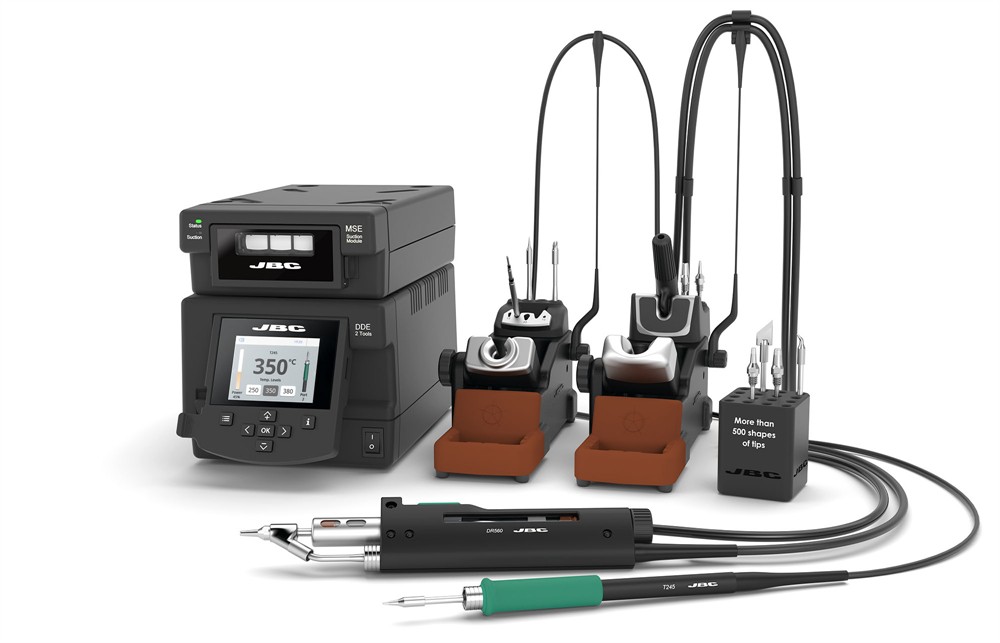

DDSE Station equipped with
MSE Module ensures efficient and precise solder removal thanks to its
powerful suction system. It is
ideal for SMDs, high-power applications, desoldering through-hole components and removing excess solder after SMD rework.
It provides the highest rework quality thanks to JBC Most Efficient Soldering System, while Intelligent Heat Management helps extend tip life and reduce energy consumption.
Includes:
• DDE 2-Tool Control Unit managing up to two tools simultaneously and fully compatible with 10 different JBC Tools, delivering up to 150 W per tool.

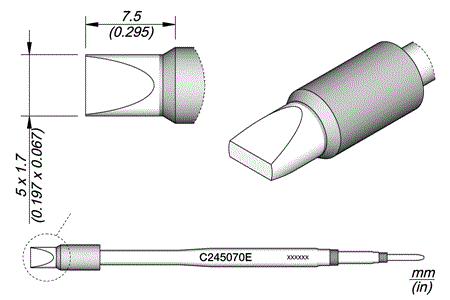

• T245 General Purpose Handle which works with C245 Cartridge Range.
• DR560 Desoldering Iron which works with C560 Tip Range.
• MSE Electric Desoldering Module offering exceptional suction power for a complete desoldering process.
PRODUCT COMPOSITION
SPECIFICATIONS
Nominal power
Peak power
150 W per tool
Selectable temperature
90 to 450 ºC / 190 to 840 ºF
Idle temp. stability (still air)
±1.5ºC / ±3ºF / Meets and exceeds IPC J-STD-001F
Vacuum
85 % / 640 mmHg / 25.4 inHg
Temperature accuracy
±3% (using reference cartridge)
Temp. adjustment
±50ºC / ±90ºF Through station menu setting
Tip-to-ground resistance
<2 ohms
Tip-to-ground voltage
<2 mV RMS
FAE / Robot connector
Remote control or FAE Fume Extractor connection
ESD safe
Meet ANSI/ESD S20.20-2021
Control Unit
232 x 148 x 120 mm / 8.40 kg.
