Indispensable for avoiding thermal shock on multilayer PCBs while reworking.

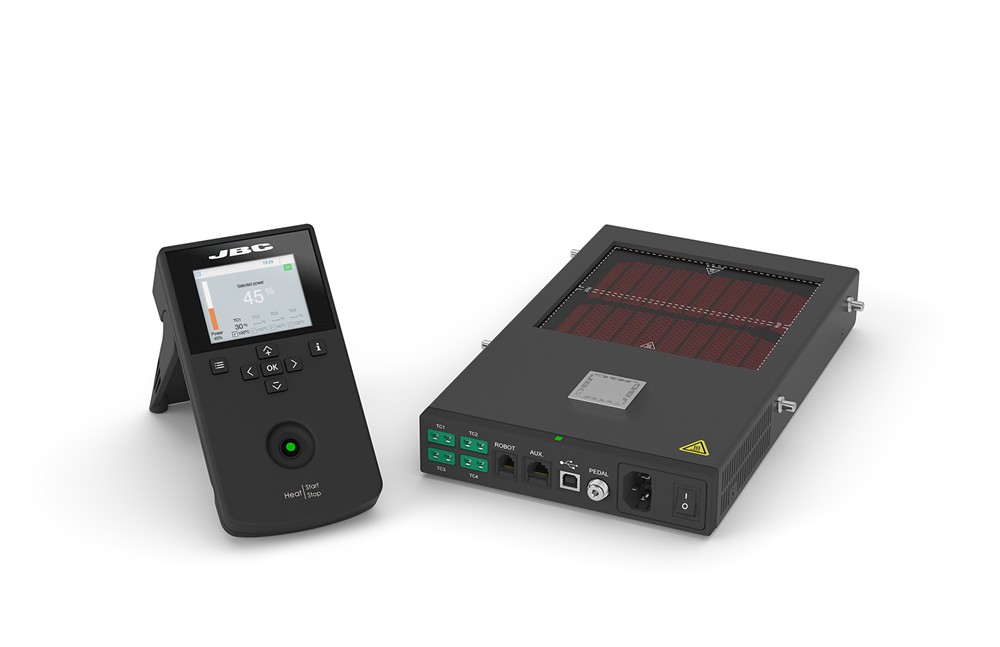

It is a complete solution to rework small / medium PCBAs, such as the once commonly used in electronic industries. It features a heating area of 130 x 135 mm / 5 x 5 in. and four TC connections.
Matchless reliability in temperature accuracy and control of the PCBA so that no component is damaged.
It features three work modes:
Power Mode allows working at a fixed power level with the option of using protection thermocouple.
Temperature Mode keeps the PCBA at a selected temperature, using the regulation thermocouple and, optionally, protection thermocouples.
Profile Mode allows control of the heating rate of the PCBA by the use of a control and protection thermocouple, without exceeding the recommended limit levels in each application. It features 25 profiles of temperature.
Up to four thermocouples can be connected in any of the three work modes.
SPECIFICATIONS
Selectable temperature
50 to 250ºC / 120 to 482ºF
Heating area
65 x 135 mm / 2.6 x 5.3 in - 1 zone
130 x 135 mm / 5.1 x 5.3 in - 2 zones
Type K TC connector
4 for Control & Protection
Profiles
22 (up to 6 steps for each), 3 preset profiles
Maximum work time
600 min. or indefinite
ESD safe
Meet ANSI/ESD S20.20-2021
Robot connector
Remote control
Aux. connector
Console connection
Pedal Connector
Connect a pedal (ref. P-005) to control the heater
PreHeater Unit
195 x 288 x 42 mm / 2.77 kg.
