Indispensable for avoiding thermal shock on multilayer PCBs while reworking.

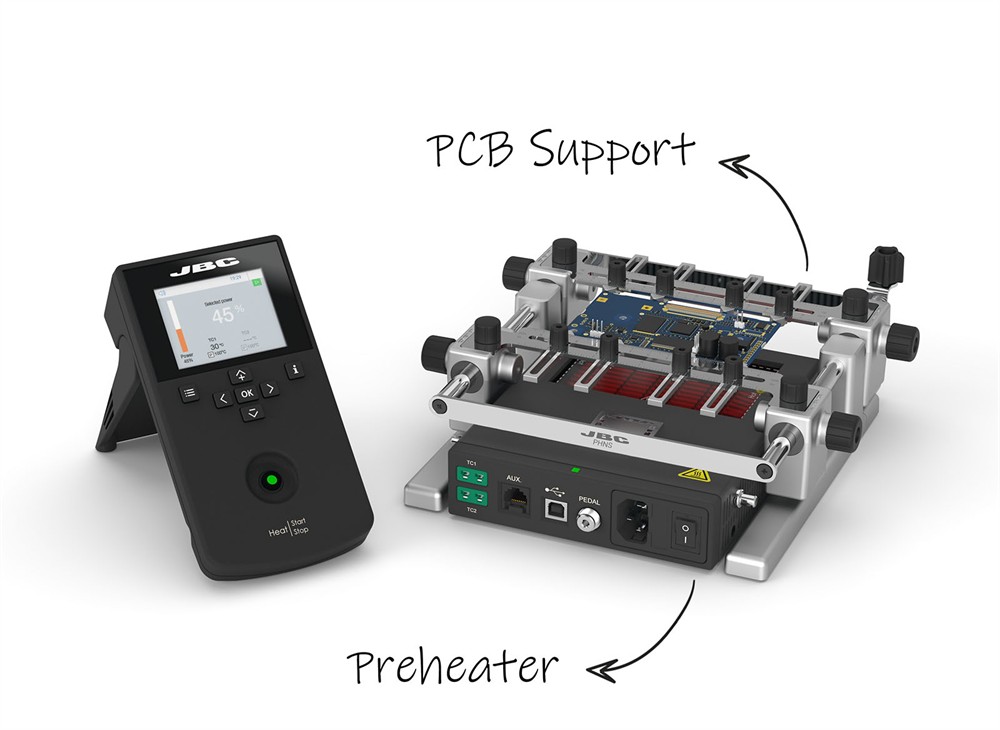

Its composition, Preheater and PCB support, is a complete solution to rework small PCBAs, such as the ones commonly used in smartphones. It features a heating area of 108 x 70 mm / 4.25 x 2.75 in.
Matchless reliability in temperature accuracy and control of the PCBA so that no component is damaged.
It features three work modes:
Power Mode allows working at a fixed power level with the option of using protection thermocouple.
Temperature Mode keeps the PCBA at a selected temperature, using the regulation thermocouple and, optionally, protection thermocouples.
Profile Mode allows control of the heating rate of the PCBA by the use of a control and protection thermocouple, without exceeding the recommended limit levels in each application. It features 25 profiles of temperature.
Two thermocouple can be connected in any of the three work modes.
PHNS Support is perfectly adaptable to any type of PCB by means of its many adjustable components and its 3 adjustable clearance positions 22, 45 or 65 mm / 0.86, 1.77 or 2.55 in.
SPECIFICATIONS
Selectable temperature
50 to 250 ºC / 120 to 482 ºF
Heating area
108 x 70 mm / 4.25 x 2.75 in
Type K TC connector
2 for Control & Protection
Profiles
22 (up to 16 steps for each)
Set temperature profiles
3 profiles (2, 3 or 4 steps)
Maximum work time
50 min or indefinite
ESD safe
Meet ANSI/ESD S20.20-2021
Robot connector
Remote control
Aux. connector
Console connection
Pedal connector
Connect a pedal (ref. P-005) to control the heater
PreHeater Unit
179 x 165 x 42 mm / 3.10 kg.
