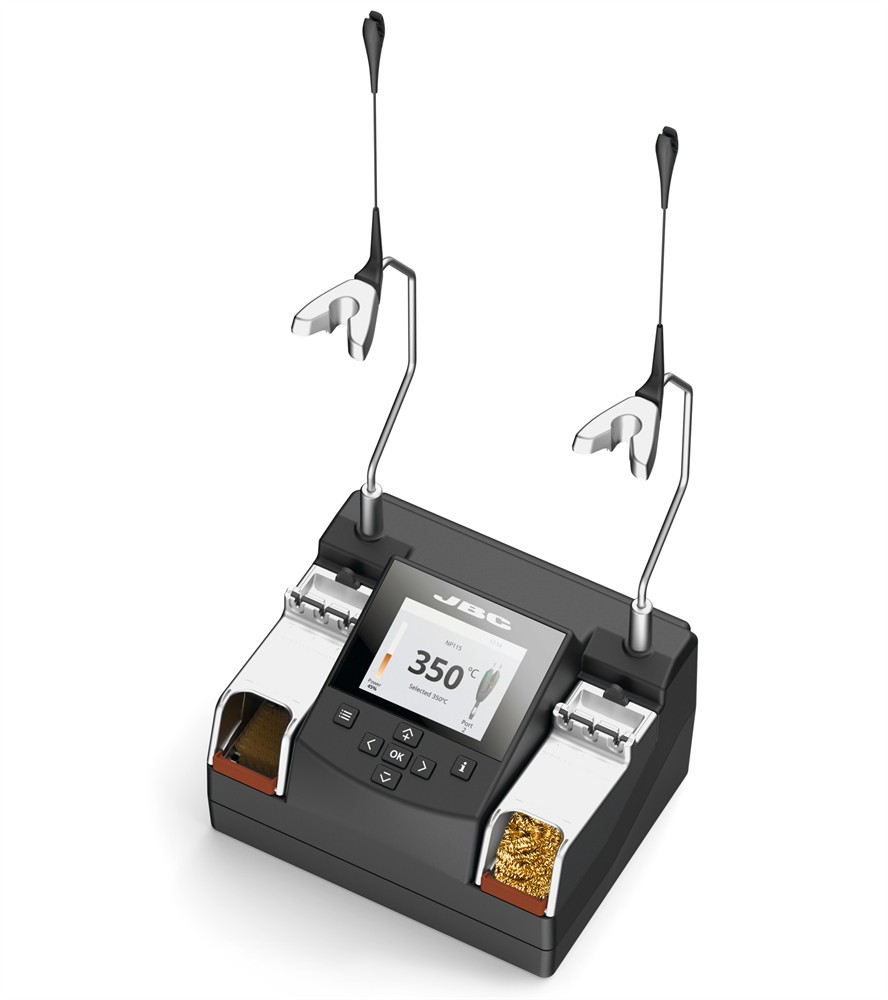

This control unit operates with 2 tools simultaneously for soldering or desoldering processes and is fully compatible with NT115 Nano Handle, NP115 Nano Tweezers and AN115 Adjustable Nano Tweezers.
It works with JBC Exclusive Heating System and Hibernation Mode.
Using the menu you can personalize over 10 parameters to help manage the soldering process.
The USB connector allows you to update softwarecreate graphs and manage parameters from a PC.
🔵 Video - Software navigation
|
SPECIFICATIONS
|
|
Peak power
|
|
14W per tool
|
|
Selectable temperature
|
|
90 - 450 °C / 190 - 840 ºF
|
|
Temperature accuracy
|
|
±3%
|
|
ESD safe
|
|
Meet ANSI/ESD S20.20-2021
|
|
Equipotential bonding
|
|
Connection to EPA
|
|
Tip-to-ground resistance
|
|
< 2 ohms
|
|
Tip-to-ground voltage
|
|
< 2 mV RMS
|
|
USB-A
|
|
Firmware update
|
|
Graphics and profiles
|
|
USB-B
|
|
PC communications
|
|
FAE / Robot connector
|
|
Remote control or FAE Fume Extractor connection
|
|
Pedal connectors
|
|
1 for each tool
|
|
Weight and dimensions
|
|
Control Unit
|
|
140 x 170 x 125 mm / 2.12 kg.
|
|
Package
|
|
280 x 280 x 164 mm / 3.31 kg.
|
