ESD Ionizing

The Ion Bar is a static eliminator that operates using industrial frequency AC high voltage. When this voltage passes through an impedance coupling device, it energizes a special emitting electrode, causing air molecules to ionize and produce both positive and negative ions. These charged particles are then transported by compressed air to the target surface, where they neutralize any electrostatic charges, ensuring effective removal of static electricity. This method provides a dependable and efficient solution for controlling static in industrial environments.

Features:

1. Bar-type, horizontal static eliminator: Designed for horizontal application, this bar-type device effectively neutralizes static charges on flat surfaces.
2. Compact and aesthetic design: The body of the bar is small and visually appealing, making it suitable for various industrial environments.
3. High-voltage, low-current operation: It operates in a high-voltage state with micro-current (at the μA level), ensuring energy efficiency and safe operation.
4. Anti-shock function: The device is equipped with a safety feature that prevents accidental electric shocks, protecting users from injury.
5. Adjustable installation: The back of the bar is designed with a special slot, allowing the installation bolts to move, making it easy to adjust during setup.

SPECIFICATION:

• Discharge range: L*W*H（150mm→3000mm）*300mm*600mm

• Installation distance: 100→600mm

• Discharge speed: ≤2.5S (Working distance:300mm, air pressure:0.3MPa)

• Ion balance: ≤|±150V|（AVG）

• Air pressure: ≤0.6MPa

• Compressed air connector: Φ8-G1/8 Grey

• Working temperature: 0℃ - 50℃

• Working humidity: ＜ 70%

• Dimensions: L*W*H（150mm→3000mm）*28.6mm*38.7mm

OBS! Power supply not included! Sold separately. art: 1155-J004

This Series Power Supply, is a specialized high-voltage power source designed for static eliminators. It is engineered to manage and neutralize static electricity on the surface of various objects, providing protection against static-related issues. This power supply is specifically intended for use with AC ion bars and ionizing air guns.

It offers a robust and dependable solution for powering static elimination tools in various industrial applications.

Product Features

• Overvoltage and short circuit protection: Ensures safe operation by preventing damage in case of electrical faults.
• High-voltage, micro-current operation: Delivers power efficiently while maintaining a safe, low current flow.
• Plug-in interface: Simplifies installation and operation, making it user-friendly.
• Reliable performance: Offers excellent performance with a focus on safety and durability.

Specifications

• Input voltage: AC 220V/50Hz or AC 110V/60Hz
• Output voltage: AC 2800V
• Power: 20W
• Working temperature: 0℃ to 50℃
• Working humidity: Less than 85% RH
• Dimensions (LWH): 184mm x 118mm x 105mm
• Output terminal:
  • A: One group
  • B: Two groups
• Working mode: Continuous operation
• Net weight: 2600g ± 250g
• Gross weight: 3100g ± 300g

This is a power frequency AC high-voltage power supply designed to effectively control static electricity on object surfaces. By providing reliable static electricity protection, it ensures the safe discharge of static buildup from the target object. This power supply is ideal for applications requiring stable and consistent static control.

It is a robust solution for industrial static control, combining efficiency with ease of use and safety.

Product Features:

• Stable output power: Ensures reliable performance during operation.
• High-voltage, micro-current operation: Delivers efficient static elimination while maintaining safety.
• Plug-in interface: Simple to install and easy to operate, enhancing user convenience.
• Thermal conductive silicone potting: Improves safety and reliability by enhancing heat dissipation and protection.

Specifications:

• Input voltage: AC 220V/50Hz or AC 110V/60Hz
• Output voltage: AC 5600V
• Power: 20W
• Operating temperature: -10℃ to +50℃
• Working humidity: Less than 75% RH
• Net weight: 3800g
• Gross weight: 4200g
• Dimensions (LWH): 136mm x 185mm x 120mm

The Ionizing Air Blower is a compact and efficient device designed for static elimination. Operating on a DC working principle, it is small enough to be installed inside equipment while maintaining high performance.
It offers low power consumption, long service life, and is recognized for its safety, reliability, and stable performance.

This ionizing air blower is ideal for applications requiring reliable static control in compact spaces, ensuring safe and efficient operation with minimal noise and energy consumption.

Key Features:

1. Durable Tungsten Needle: The blower comes equipped with a tungsten needle, ensuring extended service life.
2. Adjustable Wind Speed: Users can choose between three wind speed settings: high, medium, and low.
3. External Power Supply: The blower is powered by a dedicated external power adapter for convenience.
4. Compact Design: Its mini style allows it to be easily installed inside devices to eliminate static.
5. Certified Safety: It has CE certification, with electromagnetic protection to ensure safety during operation.

How it Works:

It uses positive and negative synchronous emission electrodes, which generate a corona discharge through high DC voltage. This ionizes air molecules, creating a stream of positive and negative ions.
An axial fan then blows these ions onto the surface of the object, effectively eliminating static electricity.

Technical Specifications:

• Input Voltage: DC12V
• Power: 5.5W
• Working Voltage: ±DC3000-DC5000V
• Ion Emission: Steady-state DC
• Emitter Electrode: Tungsten Alloy
• Discharge Structure: Uncoupled electrical contact
• Discharge Range: 450x300mm (LxW)
• Discharge Speed: ≤ 1.5s (150mm away from the air outlet)
• Ion Balance: -15V to +15V (150mm away from the air outlet)
• Alarm Indicator: Power indicator shows normal operation
• Air Volume: ≤ 48.2 CFM
• Noise Level: ≤ 38.9 dB (measured 1 meter away)
• Ozone Emission: ≤ 0.05 ppm (150mm away)
• Working Conditions: Temperature 0-50°C, Humidity 30-70%RH
• Dimensions: 85x54x112mm (fan body size)
• Shell Material: Aluminum powder-coated
• Included Accessories: U-shaped aluminum mounting brackets, bakelite screw handles
• Power Adapter: Input: AC100-240V 50/60Hz; Output: DC12V 1000mA
• Net Weight: 350g (including brackets and screw handles)
• Gross Weight: 600g
• Certification: CE certified

This is an advanced ionizing air fan designed for efficient static elimination over a wide area. Using DC de-static technology and equipped with four fans, it delivers high airflow with five-speed regulation and stable performance. Compared to regular fans, it outputs 1.45 times more air, ensuring faster and more effective static removal. It also features an LCD display for real-time monitoring of key parameters, including ion balance and system status, and offers intelligent control for various industrial applications.

The fan is a highly efficient ionizing fan system designed for wide-range static elimination in industrial settings. With its intelligent control features, network communication capabilities, and reliable performance, it is ideal for applications requiring precise static control over a large area.

Key Features:

1. Touch Control: The light touch switch button allows for easy and fast operation.
2. Multiple Air Outlets: Each outlet features 8 needles, generating a large volume of ions for effective static elimination.
3. Automatic Needle Cleaning: The system automatically cleans the ion needles every 8 hours, eliminating the need for manual cleaning.
4. High Air Volume: The fan offers five-speed regulation with stable performance and 1.45 times the air output of conventional fans.
5. LCD Display: The screen shows vital information such as device address, wind speed, cleaning cycle, ion balance voltage, temperature, humidity, and alarm status.
6. Self-Balancing Ion Function: The ion balance is maintained within ±10V, with real-time monitoring of the balance voltage.
7. Adjustable Ion Output: The positive and negative ion output ratio can be adjusted to fine-tune the ion balance voltage.
8. Alarm System: Any abnormalities in fan function or ion balance trigger alarms via LED indicators and a display prompt.
9. Remote Control: Ion output characteristics can be adjusted remotely, allowing greater control over system operations.
10. Network Communication: The fan can be connected to a wired network, enabling remote monitoring of its working status.
11. Electromagnetic Protection: CE-certified with electromagnetic protection, the fan does not interfere with other devices and is shielded from external interference.
12. Magnetic Mesh Cover: The mesh cover instantly powers off the fan when removed, making cleaning and maintenance simple and safe.

How it Works:

The fan uses a pulsed DC method to alternate between positive and negative high voltage, generating two polar ions at the electrode pins. This method offers higher ion generation efficiency than traditional AC methods, making it effective at both short and long distances. The discharge frequency is adjustable, allowing for extended static elimination range. Additionally, the positive and negative ion output ratio can be adjusted for intelligent control and optimal static elimination.

Technical Specifications:

• Input Voltage: DC 24V (RJ45 interface) / Three-in-one socket (220VAC, 50/60Hz)
• Output Voltage: DC ±4KV → ±6KV
• Power Consumption: 42.5W
• Ion Emission: Pulse DC
• Emitter Electrode: Tungsten alloy
• Discharge Range: 750x1050mm (LxW)
• Air Volume: ≤ 135 CFM per fan (total 4 fans)
• Noise Level: ≤ 58 dBA (measured 1000mm away from the air outlet)
• Ozone Emission: ≤ 0.05 ppm (150mm away from the air outlet)
• Ion Balance: ≤ ±15V
• Discharge Speed: ≤ 2.5s (measured 450mm away from the air outlet)

Status Indicators:

• Power On/Cleaning: Blue light flashes
• Normal Operation: Green light
• Fan Fault Alarm: Red light steady
• Ion Balance Alarm: Red light flashes
• High Voltage Fault Alarm: Red light flashes
• Infrared Debugging/Cleaning Prompt: Blue light flashing

Communication & Signal Output:

• Communication: RS485 interface (115200bps, 8, 1, n, n)
• Signal Output: RS485, open collector circuit: < 50V, 100mA
• Network Interface: Dual RJ45 interface for wired communication

Operating Conditions:

• Temperature: 0°C - 50°C
• Humidity: < 70% RH

Dimensions & Weight:

• Dimensions: 1011x154x70mm (Ionizing Air Blower body size)
• Net Weight: 4.85kg (including power cord and mounting bracket)

Power Adapter:

• Input: AC 100-240V, 50/60Hz
• Output: DC 24V, 2A (dual RJ45 interface)

Installation Accessories:

• 1 pair of L-shaped iron powder-coated mounting brackets
• 1 pair of bakelite screw handles (M5x8)

Certification:

• Certification: CE

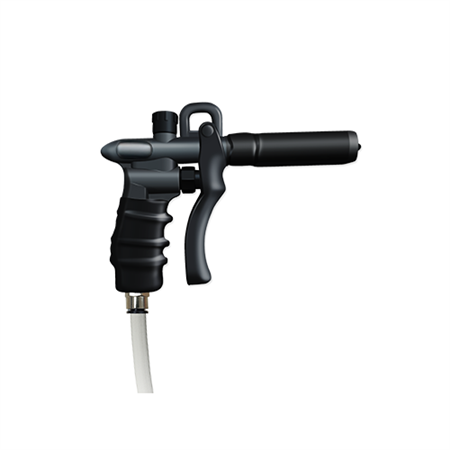

Joniserande pistol – effektiv eliminering av statisk elektricitet

Vår joniserande luftpistol är en kompakt och kraftfull lösning för effektiv eliminering av statisk elektricitet i industriella miljöer. Den pistolformade designen gör den enkel att använda, flexibel i arbetet och pålitlig även vid kontinuerlig drift.

Med hjälp av tryckluft kan den neutralisera statiska laddningar på längre avstånd, vilket gör den idealisk för användning inom elektronikproduktion, plastbearbetning, förpackning, tryckeri och andra ESD-känsliga applikationer.

Pistolen använder högspänd växelström för att jonisera luften via en specialdesignad emitterelektrod. Positiva och negativa joner transporteras med tryckluft till objektets yta där statisk elektricitet neutraliseras snabbt och effektivt.

Dess utförande ger hög säkerhet för operatören samtidigt som prestandan hålls på topp.

Fördelar och egenskaper

• Kompakt och ergonomisk pistolmodell

• Effektiv eliminering av statisk elektricitet på längre avstånd

• Säker drift med högspänning och låg ström

• Snabb urladdning och stabil jonbalans

• Idealisk för industriella och ESD-kritiska miljöer

Teknisk specifikation

• Effekt: < 10W

• Urladdningstid: ≤ 1,5 s (150 mm rakt framför munstycket)

• Jonbalans: ≤ |±30V| (150 mm rakt framför munstycket)

• Lufttryck: 0,2 – 0,6 MPa

• Arbetstemperatur: 0 – 50 °C

• Luftanslutning: Ø8 mm (kan anpassas)

• Sladdlängd: 3 m

• Mått: 185 × 37 × 147 mm

• Nettovikt: 450 g

• Bruttovikt: 510 g

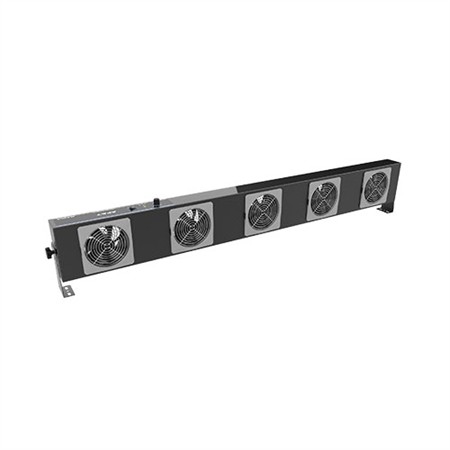

AP-DJ2715 Intelligent Control Network - Joniserande Fläkt

AP-DJ2715 är en avancerad, nätverksansluten joniserande fläkt utvecklad för effektiv eliminering av statisk elektricitet i känsliga produktionsmiljöer. Med modern DC-joniseringsteknik, hög luftvolym och intelligent styrning är den ett kraftfullt verktyg för ESD-säker produktion inom elektronik, SMT och renrum.

Denna joniserande fläkt är utrustad med fem munstycken och en högpresterande 7-bladsfläkt som levererar upp till 1,45 gånger högre luftflöde jämfört med standardlösningar. Resultatet är snabb och jämn neutralisering av statisk laddning över ett stort arbetsområde.

Fördelar och funktioner

• Intelligent nätverksstyrning – övervaka och kontrollera driftstatus i realtid
• DC joniseringsteknik – hög jonproduktion, låg störning och minimal partikelpåverkan
• Automatisk rengöring – elektrodnålar rengörs automatiskt vid start och var 8:e timme
• Självbalanserande jonisering (±10V) – säker och stabil ESD-kontroll
• 5-stegs fläkthastighet – flexibel anpassning efter behov
• Hög luftvolym – upp till 1,45x högre än traditionella jonfläktar
• Tydlig statusindikering – LED-larm för drift, fel och underhåll
• Säker konstruktion – ström bryts automatiskt vid öppning av skyddsgaller

Varför ska du välja AP-DJ2715?

Till skillnad från många AC-baserade jonfläktar på marknaden, som kan ha låg joniseringseffektivitet och risk för igensättning, använder AP-DJ2715 DC-teknik för stabil prestanda, bättre dammtålighet och mer effektiv eliminering av statisk elektricitet.

Detta gör den idealisk för:

• Elektronikproduktion
• SMT-linjer
• Renrum och känsliga miljöer
• ESD-skyddade arbetsstationer

Stabil prestanda. Smart kontroll. Effektiv ESD-hantering.

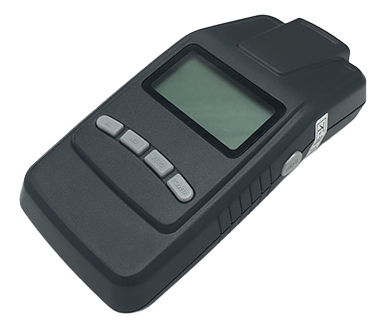

AP-YV1302 Statisk Mätare (ESD-mätinstrument)

Detta är en högprecisions statisk mätare utvecklad för att mäta elektrostatiska spänningar på ytor – helt utan kontakt. Med avancerad mätteknik minimeras påverkan på det elektrostatiska fältet, vilket säkerställer tillförlitliga och exakta mätresultat.

Detta gör instrumentet idealiskt för användning inom elektronikproduktion, plastindustri, kemi, tryckeri, optoelektronik och andra miljöer där kontroll av statisk elektricitet är avgörande.

Fördelar och funktioner

• Beröringsfri mätning – exakt mätning utan att påverka objektet
• Hög noggrannhet – pålitliga mätvärden för kritiska ESD-applikationer
• Dubbel LED-positionering – säkerställer korrekt mätavstånd
• Brett mätområde – flexibel användning i olika applikationer
• Tydlig LCD-display – enkel avläsning av mätdata
• Ergonomisk design – smidig att använda under längre arbetspass
• Användarvänlig – intuitiva knappar och enkel hantering

Användningsområden

• Elektronik- och SMT-produktion
• Plast- och kemisk industri
• Tryck- och förpackningsindustri
• Renrum och ESD-skyddade miljöer

Noggrann mätning. Enkel användning. Full kontroll över statisk elektricitet.
