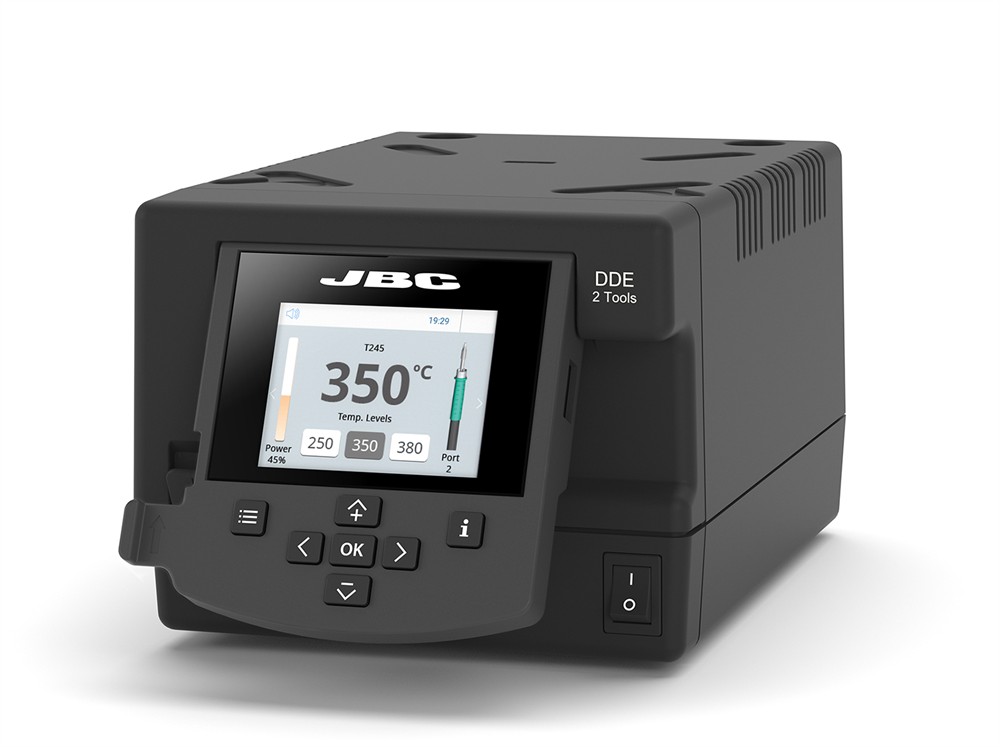

This control unit operates with 2 soldering or desoldering tools simultaneously and is fully compatible with 13 different JBC Tools delivering up to 150 W per tool.
It features a switched power supply and enhanced thermal performance. Operates with JBC Most Efficient Soldering System and Sleep & Hibernation Modes to ensure high efficiency, temperature stability and extended tip life.
When two tools are connected, the station provides a split-screen display for intuitive monitoring and control of both channels.

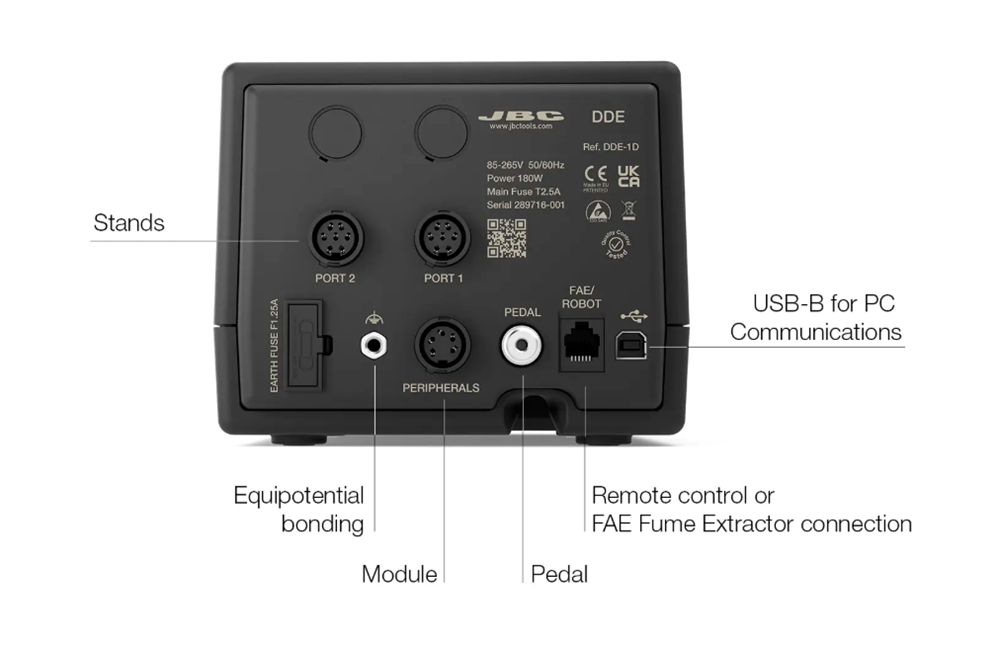

A pedal connection is also included, enabling a greater workflow flexibility.
The integrated USB connector allows software updates, graph generation and parameter management directly from a PC.
The unit is compatible with MSE-B, MVE-A and MNE-A modules (not compatible with MSE-A).
For a basic working system, at least one stand, one tool and one cartridge are required.
SPECIFICATIONS
Peak power
150 W per tool
Selectable temperature
90 to 450 ºC / 190 to 840 ºF
Idle temp. stability (still air)
±1.5 ºC / ±3 ºF / Meets and exceeds
Temperature accuracy
±3 % (using reference cartridge)
Temp. adjustment
±50 ºC / ±90 ºF through station setting menu
Tip to ground vol./ resist.
Meets and exceeds
ANSI/ESD S20.20 and IPC J-STD-001F
Ambient Operating Temp
10 - 40 ºC / 50 - 104 ºF
Fume Extractor/Peripherals/Robot
Complies with CE standards
Control Unit
232 x 148 x 120 mm / 1.49 kg.
9.13 x 5.83 x 4.72 in / 3.27 lb.
Package
258 x 328 x 208 mm / 1.94 kg.
